Solenoid Valves are increasingly pivotal for advanced industrial flow control, offering enhanced versatility and precision. The global solenoid valves market size reached USD 4,884.6 million in 2023, highlighting their widespread use. While a $2/2$ Way Solenoid Valve serves many direct control needs, other configurations unlock more complex automation. An $OEM$ Solenoid Valve Supplier often guides clients through selection and installation, including practical aspects like how to wire a $24V DC$ solenoid valve. Even High-Pressure Solenoid Valve applications benefit from these sophisticated designs.

Key Takeaways

• A 2/2 way solenoid valve is a simple on/off switch for fluid flow. It has two ports and is good for basic tasks.
• A 3/2 way solenoid valve offers more control. It has three ports and can direct fluid in different ways. This makes it useful for complex jobs.
• 3/2 way valves are very flexible. They can do many jobs, like controlling cylinders or mixing fluids. This can make systems simpler and save space.
• Even with new valves, 2/2 way valves are still important. They are simple, reliable, and cost less for basic on/off control.
• Choosing the right valve depends on the job. Engineers must pick the valve that best fits the system’s needs for good performance and long life.

Understanding Solenoid Valve Fundamentals

What Defines a 2/2 Way Solenoid Valve?

A 2/2 way solenoid valve acts as a simple on/off switch for fluid flow. It features two ports: one for inlet and one for outlet. These valves function as control units, regulating fluid flow by either shutting it off or allowing it to pass. An electrical signal initiates this action. At its core, an electromagnet pulls a plunger or armature against a spring when energized. When de-energized, the spring returns the plunger to its original position.

Consider a normally closed 2/2 way valve. Its default state is closed, preventing flow. No electric current flows, and the armature rests against the valve seat. When electricity applies, the coil generates a magnetic field. This field lifts the plunger against the spring, opening the valve. Fluid or gas then flows through. When the current stops, the magnetic field disappears, and the spring pushes the plunger back down, closing the valve. Conversely, a normally open valve stays open by default. It closes only when an electric current flows through the solenoid coil, creating a magnetic field that pushes the plunger down.

These valves find widespread use in various industries. Beverage factories use them for precise dosing and mixing of liquids, like measuring exact drink amounts for bottles. The automotive industry regulates fluids such as oil or fuel. In the utility sector, 2/2-way solenoid valves manage water and wastewater systems, offering reliable operation.

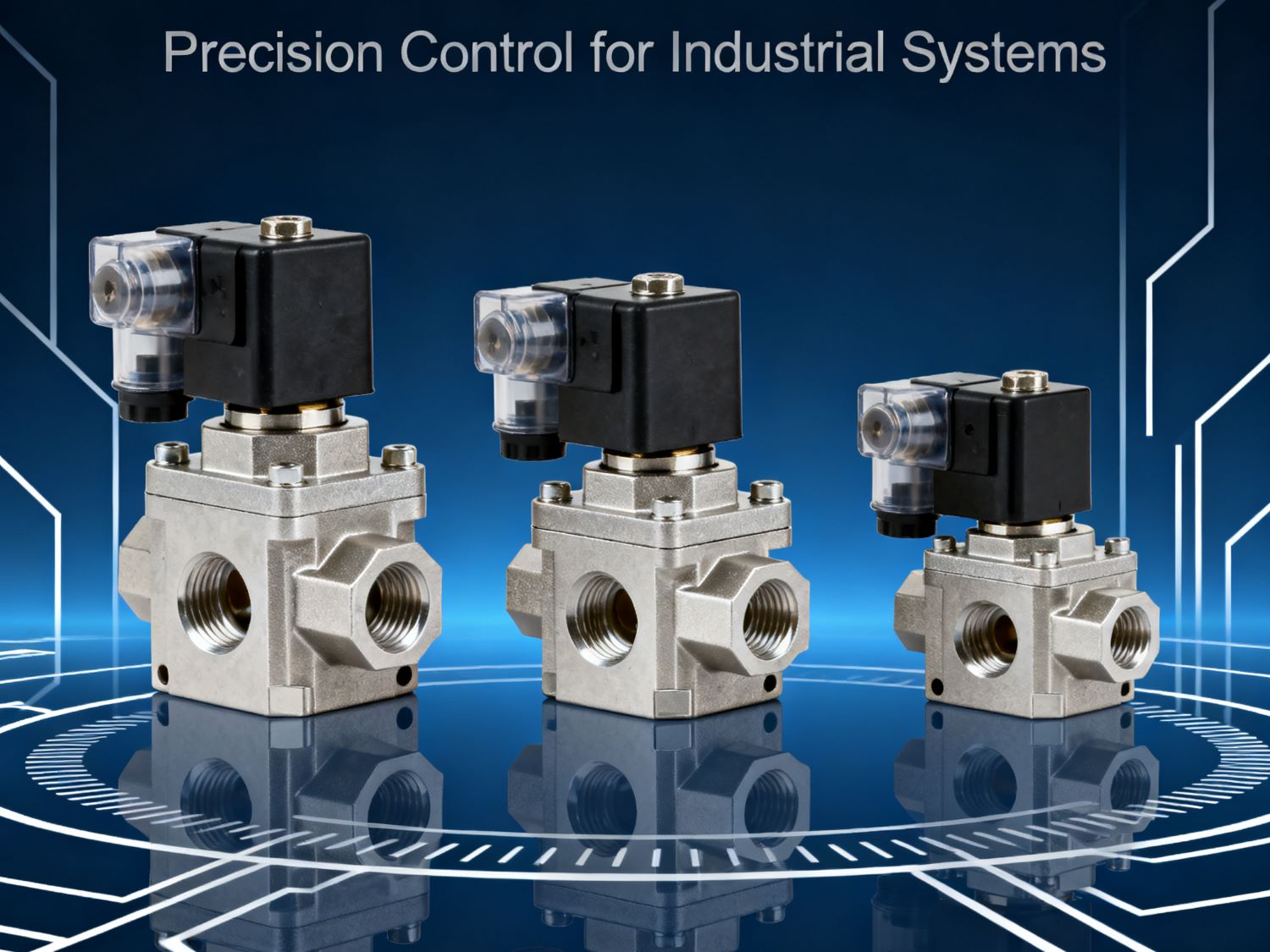

What Defines a 3/2 Way Solenoid Valve?

A 3/2 way solenoid valve offers more complex control. It has three ports: a common port, an exit, and an input. This design allows it to perform more intricate functions than a simple on/off switch.

Operational Differences Between Solenoid Valves

The main distinction between these valves lies in their port configuration and control capabilities. A 2/2-way valve has two ports and two positions, primarily functioning as an on-off switch. It either starts or stops the flow of media.

Feature	2/2 Way Solenoid Valve	3/2 Way Solenoid Valve
Number of Ports	Two ports: an inlet and an outlet.	Three ports: a common port, an exit, and an input.
Flow Control	Simple on/off operations.	More complex functions like mixing, diverting, or switching fluids between two paths.
Flow Pattern	Straightforward on/off flow.	Various flow patterns including mixing, diverting, and directional control.

A 3/2-way valve, with its three ports and two positions, connects to the other two ports at different times to permit or block flow. This allows for various flow patterns, including mixing, diverting, and directional control, making them suitable for more advanced system logic.

The Future Perspective: Why 3/2 Way Solenoid Valves are Gaining Traction

Enhanced Versatility in Industrial Applications

3/2 way valves are changing how industries manage fluid flow. They offer much more than simple on/off control. These valves can act like two 2-way valves in one unit. You can configure them as normally closed, normally open, diverting, or selecting functions. This flexibility means one valve can do the job of several. For example, you can even make them function as a 2-way valve by simply plugging the third port.

Their enhanced control capabilities are a big advantage. Two 3/2 way solenoid valves can even achieve a 4-way function. This provides superior control in specific applications, like operating double-acting cylinders. They also have diverse applications. You can use them to pilot remotely located work and process valves. They control single-acting cylinders, divert flow direction, and select between different pressures or media. This versatility makes them adaptable for many industrial processes.

These valves are also reliable. Their simple design has minimal moving parts. This reduces mechanical failure risks. Manufacturers build them to endure harsh conditions, including high temperatures, pressures, and vibrations. They also offer energy efficiency. These components consume electrical power only when energized, and generally use low power. This makes them a cost-effective solution. Installation and maintenance are easy too. They integrate smoothly into existing pneumatic systems. Troubleshooting and repair are simple. They come in various sizes and configurations, allowing for flexible system design. Plus, they have a fast response time. The electromagnetic solenoid allows quick changes in valve position. This is crucial for applications needing precise, rapid movements.

Optimizing System Design with 3/2 Way Solenoid Valves

The multi-purpose functionality of 3/2 way valves significantly optimizes system design. Engineers can simplify plumbing layouts. They reduce the number of components needed for complex tasks. Imagine needing to switch between two different fluid paths or control a single-acting cylinder. A single 3/2 way valve often handles these jobs. This reduces complexity and potential leak points.

Their ability to achieve 4-way functionality with just two 3/2 way valves is a game-changer. This provides precise control for applications like operating pneumatic actuators. It allows for both extending and retracting a cylinder with fewer individual valves. This streamlined approach saves space and reduces installation time. The adaptability of these valves—offering on/off, exhaust, pressure, and directional control—means designers can create more efficient and compact systems. They no longer need a separate valve for each specific function. This leads to cleaner, more manageable industrial setups.

Cost-Effectiveness and Efficiency Gains

3/2 way valves bring significant cost savings and efficiency gains to industrial automation. They are energy-efficient. These valves consume minimal power, especially when designed for “on-demand” operation. This means they only use electricity when necessary. This characteristic leads to lower electricity bills. These savings accumulate over time, particularly in applications with frequent valve operations. For example, certain 3/2 way solenoid valves, like 24VDC models, operate at low voltage. This provides reliable performance while ensuring energy-efficient control in pneumatic or hydraulic systems.

Their design also contributes to system reliability. They generate less heat. This prevents premature wear and tear on components. This enhances reliability and extends the lifespan of the fluid or gas control system. With few moving parts, they have a reduced risk of wear and tear. This offers reliable and long-lasting performance with proper maintenance. These valves are engineered for a long service life. This minimizes downtime and maintenance expenses. They provide dependable performance without the high cost of specialized valves. This offers excellent value.

Correctly sized 3/2 way valves use less energy. They prevent air leaks and reduce the workload on compressors. This leads to lower utility bills. Maintenance costs also decrease. Properly chosen control valves last longer and require fewer repairs. Selecting and maintaining the right valve increases reliability and extends equipment life. This involves choosing valves for specific applications, correct installation, using filtration systems, limiting operating cycles, and protecting valves from extreme conditions.

Specific Types of 3/2 Way Solenoid Valves and Their Impact

Different types of 3/2 way solenoid valves exist. Each type offers unique advantages for specific industrial needs. Understanding these differences helps you choose the best valve for your system. Let’s look at some common types and what they do.

First, consider direct-acting 3/2 way valves. These valves work simply. The solenoid coil directly moves the valve’s internal plunger. This plunger then opens or closes the flow path.

• Impact: Direct-acting valves offer very fast response times. They are great for applications needing quick, precise control, especially with smaller flow rates. Think about medical devices that dispense tiny, exact amounts of fluid. They also work well in small pneumatic systems where speed is key.

Next, we have pilot-operated 3/2 way valves. These valves use a two-stage process. The solenoid first controls a small “pilot” valve. This pilot valve then uses the system’s own pressure to operate a larger main valve.

• Impact: Pilot-operated valves can handle much larger flow rates and higher pressures than direct-acting ones. They are more robust for heavy-duty industrial tasks. You often find them in large machinery or systems controlling big pneumatic actuators. While they might respond a little slower than direct-acting valves, their ability to manage significant power makes them invaluable.

You also encounter normally closed (NC) and normally open (NO) configurations.

• Normally Closed (NC): In its default state (when not energized), the common port is blocked, and the exhaust port is open. When you energize the valve, it connects the common port to the output port and blocks the exhaust.

  • Impact: NC valves are a common choice for safety. They act as a “failsafe closed” mechanism. If power fails, the valve automatically shuts off the flow. Many systems use them to control single-acting cylinders, where you want the cylinder to retract when power is off.

• Normally Open (NO): By default, the common port connects to the output port, and the exhaust port is blocked. When energized, the valve blocks the common port and connects the output to the exhaust.

  • Impact: NO valves provide a “failsafe open” function. They are useful for venting systems or maintaining pressure until you activate them. For example, they can keep a line open to atmosphere until a process starts.

Some manufacturers also offer universal 3/2 way valves. These valves are quite flexible. You can configure them as either normally closed or normally open, depending on how you connect the ports.

• Impact: Universal valves simplify inventory for businesses. A single valve type can serve multiple purposes, reducing the need to stock different specific configurations. This flexibility helps engineers design systems more easily.

The materials used in these valves also matter. You can find them made from brass, stainless steel, or various plastics.

• Impact: Material choice directly affects where you can use the valve. Brass is common for general-purpose applications. Stainless steel handles corrosive fluids or high temperatures. Plastic valves are suitable for aggressive chemicals or food-grade applications.

These specific types of 3/2 way Solenoid Valves allow engineers to build highly precise, safe, and efficient control systems across many industries. They provide the right tool for the right job, whether it’s a delicate medical device or a powerful industrial press.

When 2/2 Way Solenoid Valves Remain Essential

While 3/2 way valves offer advanced capabilities, 2/2 way solenoid valves still hold a vital place in industrial flow control. Their simplicity, cost-effectiveness, and proven reliability make them the best choice for many applications.

Simplicity and Direct Control Needs

Many industrial settings still rely heavily on 2/2 way valves. They offer straightforward on/off control without complex programming or intricate setups. This makes them easy to understand and operate. Think about automated assembly lines. These lines use 2/2 way valves to control coolants, lubricants, or compressed air. Pneumatic control systems also benefit from their simplicity. They provide simple on/off control for air lines. They can shut off the air supply to specific parts of a machine. These valves also interlock various system parts to ensure safe operation. They isolate different sections of a system. They connect various system parts as needed. Their reliability comes from having fewer moving parts. This leads to consistent performance and reduced maintenance. They are also cost-effective due to high-volume production and basic construction. You get a quick response time for rapid switching between open and closed states. Installation is easy with standard connection types and a compact size. They are versatile for use with various fluids and gases across diverse industries.

Cost Considerations for Basic Flow Control

When you only need basic flow control, 2/2 way valves often present the most cost-effective solution. Businesses must consider the total cost of ownership. Choosing a valve with a lower initial cost but higher maintenance needs can lead to significant long-term operational cost implications. Costly downtime occurs when each failure or leak halts operations for diagnosis and repair. This leads to lost productivity and revenue. Unreliable valves demand frequent attention, creating maintenance headaches. This diverts resources from more valuable tasks. In applications like agriculture, inconsistent performance can result in reduced yields and increased risks. Unexpected expenses arise from the need for repeated part replacements. This significantly impacts operational budgets and profit margins. For simple on/off tasks, 2/2 way valves offer a balance. They have a lower initial price and proven reliability. This makes them a smart investment for straightforward systems. Investing in a higher-quality valve with better performance and reliability often pays off in the long run. For basic control, a well-chosen 2/2 way valve is that higher-quality, reliable option.

Reliability in Straightforward Systems

The simpler design of 2/2 way valves directly contributes to their long-term reliability in basic applications. The 2/2 way design is a two-port valve for on/off control. This indicates a simple mechanism. It features durable construction, built for reliability and longevity. It is designed for low maintenance, requiring minimal upkeep. The 2/2 way configuration offers simple on/off control with a two-port design. This makes it ideal for managing fluid flow. It boasts durable construction, made from robust materials like brass or stainless steel for long-lasting performance. It ensures reliable operation, providing consistent performance and durability. It is engineered for low maintenance, reducing operational costs and downtime. Fewer moving parts mean fewer things can break. This makes them a dependable choice for systems that do not require complex fluid manipulation. These Solenoid Valves offer consistent performance day after day.

Key Considerations for Industrial System Optimization with Solenoid Valves

Matching Solenoid Valve Type to System Logic

Choosing the right solenoid valve for an industrial system is crucial. Engineers must consider several factors to ensure optimal performance. First, they determine the application’s needs. Does the task require a holding, push, or pull solenoid? This depends on whether the system needs to maintain a position or initiate movement. Environmental factors also play a big role. The chosen valve must withstand conditions like extreme temperatures or high humidity. Power requirements and system compatibility are essential. The solenoid’s voltage and current must match the system, and it should consume power efficiently. Response time also matters for operational speed.

Designers also look at customizable features. They might need options to adjust stroke length, add sensors, or modify mounting for unique project needs. Space constraints and mounting options are practical considerations. Measuring available space and planning mounting ensures seamless integration. Finally, cost and long-term maintenance needs are important. A higher-quality, durable solenoid can be more cost-effective over time. Engineers also decide between single or double coil solenoids based on fail-safe behavior. They check the valve’s rated airflow to prevent performance issues. Environmental ratings like NEMA, ATEX, or IP for dust and water resistance are also critical. They consider the valve’s design and functionality, such as 2-way, 3-way, or 4-way, and whether it needs to be normally closed or normally open.

Achieving Precise Control and Automation

Modern technology allows for highly precise control and automation using solenoid valves. Advanced electronic control systems use microprocessors and feedback loops. These systems continuously monitor and adjust valve performance. They can even compensate for environmental changes like temperature or pressure. This ensures consistent flow rates. Mechanical design improvements also help. Innovations in valve seat geometries and sealing mechanisms enhance flow control. This allows for consistent flow across different operating conditions.

Automated calibration and self-diagnostic systems are also common. These features allow solenoid valve systems to perform regular self-checks. They detect performance deviations and automatically adjust parameters for accurate flow control. This reduces the need for manual intervention. For example, Bosch’s advanced solenoid valve technology uses high-precision sensors and microprocessor-controlled drivers. This achieves dynamic flow regulation with high accuracy. Eaton’s AxisPro™ Proportional Valves use closed-loop control and onboard electronics for precise flow regulation. They even compensate for fluid viscosity and temperature changes. Integrating IoT sensors allows real-time monitoring of flow rate, pressure, and valve position. This enables predictive maintenance and improves efficiency. Programmable and smart solenoid valves communicate with centralized control systems. This aligns with the trend towards intelligent manufacturing.

Integration with Existing Infrastructure

Solenoid valves often integrate with larger control systems like PLCs (Programmable Logic Controllers) or DCS (Distributed Control Systems). The DCS or controller sends a 4–20 mA electrical signal to a valve positioner. This positioner receives both power and signal through the same loop. An internal converter then changes the electrical signal into a pneumatic output. This pneumatic pressure moves the valve stem. A feedback system continuously monitors the valve’s actual position. This ensures it precisely matches the input signal. For example, 4 mA means 0% valve opening, while 20 mA means 100% opening. Modern smart positioners offer advanced features like digital diagnostics and self-calibration.

However, integrating with older systems can present challenges. A lack of standardization across different solenoid valve manufacturers and control systems can lead to fragmented interfaces. This makes system upgrades difficult. Traditional HMIs (Human-Machine Interfaces) also have limited adaptability. They struggle to incorporate advanced features like remote monitoring or integration with IoT ecosystems. This can hinder overall efficiency.

Maintenance and Longevity Factors for Solenoid Valves

Keeping your industrial systems running smoothly means paying attention to the small but mighty components. Solenoid valves are crucial parts of many operations. Proper maintenance ensures they last a long time and perform reliably. Experts recommend regular maintenance, typically every 6 to 12 months. This frequency depends on the application and what the manufacturer suggests.

The lifespan of these valves varies greatly. Some applications can be quite harsh on a valve’s internal and external parts. This means they need more frequent check-ups. For instance, components wear out quickly without proper lubrication. They might need replacement after just 100,000 cycles or even less. However, if the media flowing through the valve provides lubrication, parts can last for millions of cycles. Dry air and rapid cycling can be particularly damaging. They lack lubrication and cause frequent pounding of internal parts. Valves controlling water can also face issues. Mineral buildup happens if water sits idle for long periods. Small clearances between moving parts increase the chance of early failure, especially with unfiltered or thick media.

A structured maintenance schedule is vital for valve reliability. Factors like how often you use the system, environmental conditions, and the type of fluid determine how often you need maintenance. Systems used heavily or those in tough environments might need more frequent inspections. Documenting maintenance activities helps a lot. This includes cleaning, inspections, and replacing parts. It helps identify patterns and predict potential problems. Scheduling maintenance during planned downtimes minimizes disruptions. This extends the valve’s lifespan and makes the whole system more efficient.

---

3/2 way solenoid valves bring big improvements for complex industrial flow control. They offer more precise and versatile options. Their future role is to work alongside 2/2 way valves, not replace them entirely. Think of them as a powerful addition to the toolkit. They help optimize specific, advanced applications, making systems smarter and more efficient. This means better control and performance where it matters most.

FAQ

What is the main difference between a 2/2 way and a 3/2 way solenoid valve?

A 2/2 way valve has two ports and two positions. It simply turns fluid flow on or off. A 3/2 way valve has three ports and two positions. It can direct fluid between two paths or vent pressure, offering more complex control options.

Why would a company choose a 3/2 way solenoid valve over a 2/2 way valve?

Companies choose 3/2 way valves for greater control. They can manage single-acting cylinders, divert flow, or select between different pressures. This versatility often simplifies system design and reduces the number of components needed for advanced tasks.

When are 2/2 way solenoid valves still the best option for industrial control?

2/2 way valves remain ideal for simple on/off tasks. Their straightforward design makes them reliable and cost-effective for basic flow control. They are perfect for applications that only need to start or stop fluid movement without complex routing.

Can a 3/2 way valve perform the function of a 2/2 way valve?

Yes, a 3/2 way valve can function as a 2/2 way valve. You simply plug one of its ports. This flexibility allows engineers to use one type of valve for multiple purposes, which can simplify inventory and system design.

Do 3/2 way solenoid valves save energy?

Many 3/2 way solenoid valves offer energy efficiency. They often consume power only when energized. This characteristic leads to lower electricity bills over time, especially in systems with frequent valve operations. They also help optimize system performance.
