Selecting an industrial solenoid valve demands careful evaluation. Engineers identify critical factors for optimal performance. Media compatibility, pressure ratings, and electrical requirements are paramount. For instance, the fluid type dictates materials like a brass solenoid valve or a 2/2 ways brass solenoid valve. A systematic approach ensures proper selection. This method guarantees compatibility and longevity in industrial applications. Understanding What Is a Solenoid Valve and How Does It Work in Industrial Systems? aids this process. What materials are best for pneumatic valves also influences material choices.

Key Takeaways

• Understand your solenoid valve’s job. Decide if it needs to be open or closed when it has no power.
• Check what liquid or gas will go through the valve. This helps you pick the right materials so the valve lasts longer.
• Measure the right size for your valve. A wrong size can cause problems like slow flow or wasted energy.
• Think about the valve’s surroundings. Extreme heat, cold, or dirt can stop it from working well.
• Look for safety approvals. These show the valve meets important safety rules for your industry.

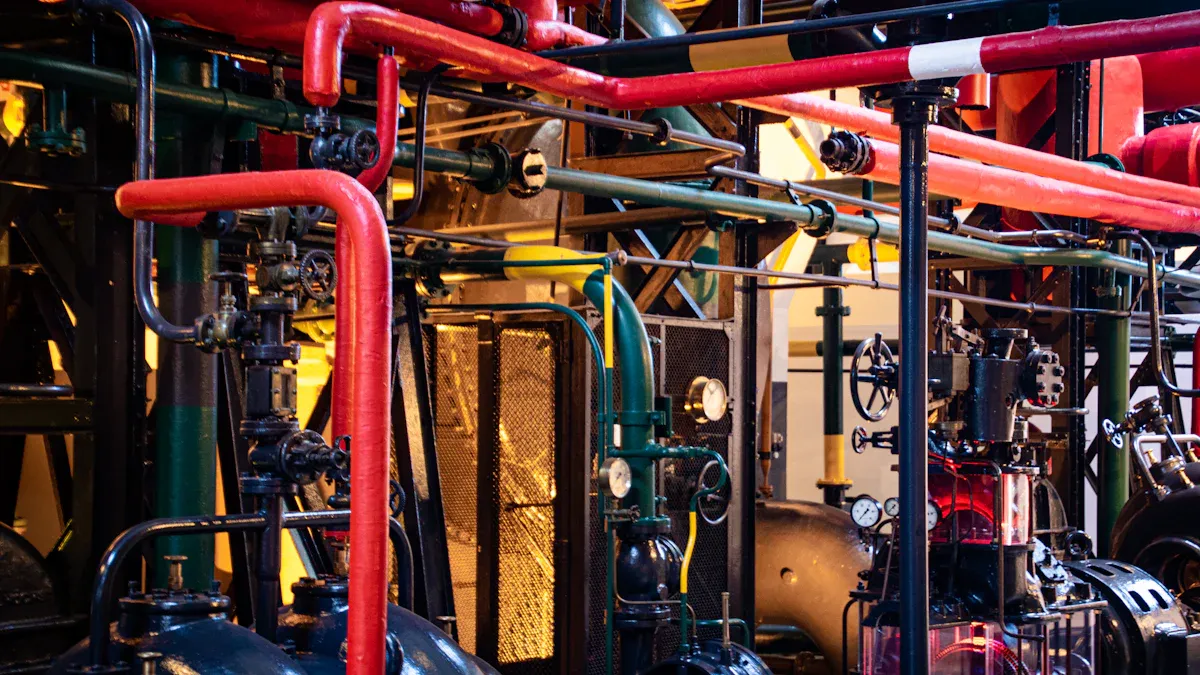

Defining Your Industrial Solenoid Valve Application

Selecting the correct industrial solenoid valve begins with a clear understanding of its intended application. Engineers must thoroughly define the operational requirements and environmental factors. This foundational step ensures the chosen valve performs reliably and efficiently within the system.

Required Solenoid Valve Functionality

The primary function of a solenoid valve involves controlling the flow of fluids or gases. This control can manifest in two main operational modes: normally closed (NC) or normally open (NO). The choice between these modes depends on the application’s default state and safety requirements.

Feature	Normally Closed	Normally Open
Default State	Closed when not energized	Open when not energized
Coil Energized State	Opens the flow path	Closes the flow path
Application Focus	Short opening times preferred	Long opening times preferred
Working Principle	Disconnects flow when off	Connects flow when off

A normally closed valve remains shut when unpowered, blocking fluid flow by default. Applying electrical power energizes the solenoid coil, creating a magnetic field that lifts the plunger, opening the valve and allowing flow. If power fails, a spring pushes the plunger back, immediately closing the valve. Conversely, a normally open valve allows flow by default when unpowered. In its de-energized state, the plunger stays lifted, keeping the orifice open. Applying electrical power pulls the plunger down, closing the orifice and stopping flow.

Normally closed valves offer reliable shutoff and enhanced safety, automatically stopping flow during power loss. They provide precise control, help prevent leaks, and support automated processes with quick response times. However, they require continuous power to stay open, potentially leading to higher energy consumption if the valve must remain open for extended periods. The coil may also heat up during prolonged use.

Normally open valves deliver efficiency and reliability for continuous flow applications. They remain open during power failure, acting as a fail-safe design. These valves offer simple operation, rapid response times, and often feature a compact design. However, they may not suit every safety scenario as they allow flow during power loss, which can pose a risk in certain systems.

Consider these common applications for each type:

• Normally Closed Solenoid Valves are used in:

  1. HVAC: Control refrigerants, regulate air flow, and manage environmental conditions.
  2. Water Treatment: Regulate flow of water and chemicals during filtration and purification processes.
  3. Fire Suppression: Act as emergency shutoff mechanisms.

• Normally Open Solenoid Valves are used in:

  1. Maintaining continuous coolant flow to prevent equipment overheating during power outages.
  2. Ensuring emergency systems like fire suppression or safety showers remain operational when power fails.
  3. Allowing continued airflow in HVAC or ventilation systems for air quality.

Media Properties for Solenoid Valve Selection

The characteristics of the fluid or gas passing through the valve significantly influence material selection and valve design. Ignoring these properties can lead to premature failure or system inefficiency.

Key media properties to consider include:

• Chemical Composition: Valve body materials must withstand chemical corrosion from the service media. This prevents erosion and potential leakage. Corrosive fluids necessitate materials like stainless steel or specialized plastics. Neutral media, such as water or air, are compatible with a broader range of materials, including brass or aluminum.
• Erosion from Fast-Moving Fluids: The valve material must resist erosion caused by fluids moving at high speeds.
• High Process Temperatures or Pressures: The valve material needs to withstand chemical reactions induced by high process temperatures or pressures. Sealing materials, in particular, require high pressure and temperature tolerance.
• Viscosity: The viscosity of the fluid influences the valve’s material and design.

Media viscosity, defined as a fluid’s internal resistance to flow, is critical for solenoid valve selection. Higher viscosity fluids flow slower and necessitate specially designed valves. Accurate viscosity measurement is essential to prevent issues like flow restrictions, valve wear, or failure. Temperature significantly influences fluid viscosity and, therefore, valve capacity. Low temperatures can cause slow response times or prevent fluid flow, while high temperatures can affect fluid viscosity and potentially damage the valve’s coil.

Standard 2/2 and 3/2 solenoid valves typically handle fluids with viscosities up to 40 to 50 Centistokes (cSt). However, specialized valves exist for more demanding applications:

• Coaxial solenoid valves facilitate safe fluid control for highly viscous media such as heavy oils, grease, or slurries. These applications require large forces to push thick fluids. Their operation is independent of system pressure.
• Angle Seat Piston Valves and other specialized solenoid valves are capable of handling viscosities up to 600 Centistokes and beyond.

Sizing the Solenoid Valve for Flow Rate

Properly sizing the solenoid valve for the required flow rate is crucial for system stability, efficiency, and reliability. Incorrect sizing can lead to significant operational problems. Engineers use the flow coefficient (Cv or Kv) to determine the appropriate valve size.

The flow coefficient (Cv) for liquids can be calculated using the formula: Cv = Q * sqrt(SG / P). Here, Q represents the flow rate in gallons per minute (GPM), SG is the specific gravity of the fluid, and P is the pressure drop in pounds per square inch (psi). This formula bases its calculation on the flow rate of water at 60°F with a 1 psi pressure drop across the valve. The Kv flow formula states that flow in liters per minute equals the Kv valve flow factor multiplied by the square root of the pressure drop times the density of the media. For example, to calculate the flow of water with a Kv value of 35 and a 3 bar pressure differential (ΔP), the calculation is: Expected Flow = 35 x √(3 divided by 1) = 35 x √3 ≈ 60.62 liters per minute. To convert between Kv and Cv, use these formulas: Kv = 0.86 x Cv and Cv = Kv / 0.86.

Engineers can also use flow chart methods for more complex calculations:

• To calculate the flow coefficient (Kv) for a liquid, such as water with a flow of 100 l/mn and a 5 bar pressure drop (specific gravity of water = 1 kg/dm3), employ a flow chart method.

  1. Begin by drawing a straight line that intersects the values 5 (pressure drop) and 100 (flow rate) on their respective axes.
  2. Extend this line to the designated mark line.
  3. Then, draw a straight line from the value 1 on the specific gravity axis to the intersection point of the first line with the mark line.
  4. This final line will intersect the Kv axis, indicating the desired Kv value.

Incorrect valve sizing leads to various issues. An undersized valve restricts flow and increases pressure losses, while an oversized valve often leads to control difficulties and unnecessary costs.

Consequences of Undersized Solenoid Valves:

• Low flow rates: The valve restricts the amount of steam, leading to insufficient flow for downstream equipment. This impacts heat transfer efficiency, production time, and product quality.
• Increased energy consumption: The system compensates for restricted flow by working harder (e.g., boilers generating more steam), leading to higher fuel consumption and increased energy costs.
• Increased pressure drop: Restricted flow causes a significant pressure drop across the valve, impairing the performance and reliability of downstream steam equipment.
• Rapid wear and tear: Operating beyond optimal range exposes the valve to thermal and mechanical stress, leading to erosion, cavitation, and thermal fatigue.

Consequences of Oversized Solenoid Valves:

• Controllability issues: The valve may need significant closure (50% or more) to show any flow reduction, making precise modulation difficult.
• Hunting and overshooting: The control loop struggles to maintain stability, causing the valve to constantly hunt and overshoot.
• Premature wear: Constant hunting and overshooting lead to premature wear of both the valve and its actuator.

Operating Conditions for the Solenoid Valve

Understanding the operating conditions is crucial for selecting a reliable solenoid valve. These conditions directly influence the valve’s performance, longevity, and safety. Engineers must carefully assess the environment where the valve will operate.

Temperature is a primary concern. Extreme ambient temperatures significantly impact both the coil and seal longevity of a solenoid valve. High temperatures can cause several issues. Increased coil resistance reduces current and magnetic flux, weakening the magnetic field. This can lead to performance degradation. High temperatures also degrade coil wire insulation, potentially causing short circuits or melting. Exceeding the Curie temperature can permanently damage magnetic cores. Continuous operation at elevated temperatures accelerates wear and tear, shortening the solenoid’s service life. Overheating from continuous operation or high cycling, combined with ambient heat, damages elastomers and electrical components. Extreme heat alters the molecular structure of elastomers, accelerating their aging. This makes them less flexible and prone to cracking and failure. Heat also increases the coil’s resistance, requiring higher voltage for operation. This can lead to improper actuation if the voltage is insufficient. In severe cases, the electromagnetic coil can overheat and fail, especially with inadequate insulation. Standard valve seal materials may degrade or melt, leading to leakage.

Conversely, low temperatures also pose challenges. Extreme cold compromises the reliability of solenoid valve performance. It can affect the state of the media during operation. Condensation around the coil can freeze, disrupting electrical actuation. Rubber or elastomer seals can become hard and brittle, resulting in cracks or leakage.

Pressure is another critical operating condition. The valve’s pressure rating must match the system’s maximum operating pressure. Engineers consider both static pressure (when the fluid is at rest) and dynamic pressure (when the fluid is flowing). Operating a valve above its rated pressure can cause damage, leakage, or catastrophic failure. Operating it significantly below its minimum required pressure might prevent proper actuation, especially for pilot-operated valves.

Environmental factors also play a role. Humidity, dust, vibration, and corrosive atmospheres can all affect a solenoid valve. High humidity can lead to condensation and corrosion of internal components. Dust and particulate matter can clog the valve or cause abrasive wear. Excessive vibration can loosen connections or damage internal parts. Corrosive atmospheres require valves made from resistant materials to prevent degradation and ensure long-term functionality.

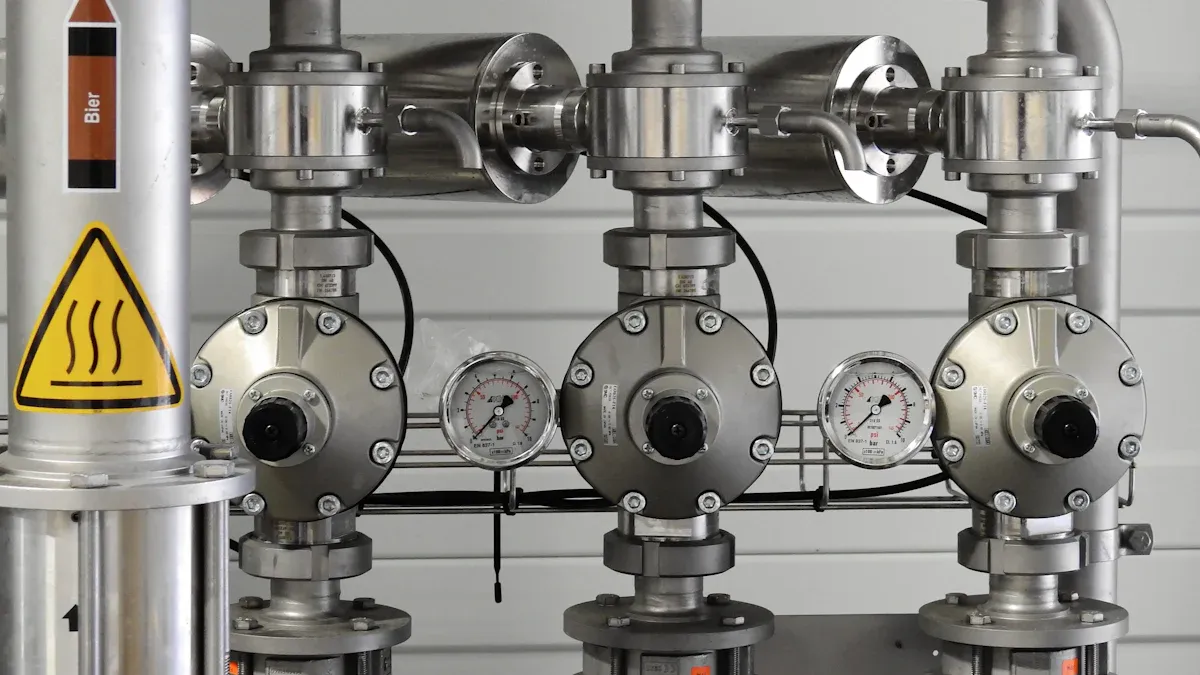

Evaluating Technical Specifications of a Solenoid Valve

Engineers must meticulously evaluate a solenoid valve’s technical specifications. This evaluation ensures the valve meets the application’s demands. It also guarantees reliable and safe operation within industrial systems.

Material Compatibility for Solenoid Valve Components

Selecting appropriate materials for solenoid valve components is paramount. The materials must withstand the media’s chemical properties and operating conditions. Incompatible materials lead to premature wear, leakage, and system failure.

Valve body materials require careful consideration. For instance, 316 stainless steel offers excellent corrosion resistance. This austenitic stainless steel resists a wide range of environments. It is not susceptible to stress corrosion cracking. Heat treatment also does not affect it. This makes it a common choice for valve bodies in corrosive applications. Other materials like plastic, such as PVC, PTFE, and PVDF, also provide chemical resistance and are lightweight.

Seal materials are equally critical. They form the barrier between the media and the external environment. Common options include NBR, EPDM, FKM, and PTFE. More specialized and expensive options like FFKM, Rulon, Silicone, and Kalrez exist for highly aggressive media. For corrosive environments, specific seal materials excel. FKM (Fluoroelastomer, Viton®) resists heat, acids, oils, and salt solutions. FF-KM (Perfluoroelastomer) offers outstanding resistance to nearly all solvents and chemicals, though it is costly. Fluorinated Ethylene Propylene (FEP) is chemically inert and tough, with excellent chemical resistance. EPDM (Ethylene Propylene Diene Monomer) resists hot water, steam, and oxidizing chemicals. PTFE (Teflon®) provides exceptional resistance to almost every chemical and extreme temperature. However, it has limited sealing performance due to its lack of elasticity.

Internal components, such as the armature assembly, also contact the media. These parts typically use stainless steel grades like AISI304 for the tube, AISI430F for the magnetic armature, and AISI302 for springs. All materials in contact with the media must be compatible.

For general-purpose applications involving water, air, and inert non-aggressive liquids and gases, almost any solenoid valve material works well. However, aggressive chemicals demand careful selection of compatible materials for construction. Always consult the chemical supplier for approved materials. Also, consult the solenoid valve supplier before ordering.

The following table illustrates the compatibility of various seal materials with different fluids:

Fluid	EPDM	Silicone	Viton	Aflas
Abietic Acid	X	X	X	X
Acetaldehyde	2	2	4	3
Acetamide	1	2	3	2
Acetanilide	1	2	3	X
Acetic Acid, 30%	1	X	X	X
Acetic Acid, 5%	1	1	1	1
Acetic Acid, Glacial	1	1	2	3
Acetic Acid, Hot, High Pressure	3	3	4	3
Acetic Anhydride	2	2	4	2
Acetoacetic Acid	1	2	3	X
Acetone	1	4	4	2
Acetone Cyanohydrin	1	2	3	X
Acetonitrile	1	X	1	1
Acetophenetidine	4	X	1	X
Acetophenone	1	4	4	2
Acetotoluidide	4	X	1	X
Acetyl Acetone	1	4	4	2
Acetyl Bromide	1	4	1	2
Acetyl Chloride	4	4	1	2
Acetylene	1	2	1	1
Acetylene Tetrabromide	1	X	1	1
Acetylene Tetrachloride	1	X	1	1
Acetylsalicylic Acid	4	X	1	X
Acids, Non-organic	X	X	X	X
Acids, Organic	X	X	X	X
Aconitic Acid	X	X	X	X
Acridine	X	X	X	X
Acrolein	1	2	3	X
Acrylic Acid	4	X	1	X
Acrylonitrile	4	4	3	3
Adipic p Acid	2	X	X	2
Aero Lubriplate	4	2	1	2
Aero Shell 17 Grease	4	2	1	2
Aero Shell 750	4	4	1	2
Aero Shell 7A Grease	4	2	1	2
Aero Shell IAC	4	2	1	2
Aerosafe 2300	1	3	4	2
Aerosafe 2300W	1	3	4	2
Aerozene 50 (50% HHydrazine d i 50% UDMH)	1	4	4	2
Air, Below 200° F	1	1	1	1
Air, 200 – 300° F	2	1	1	1
Air, 300 – 400° F	4	1	1	2
Air, 400 – 500° F	4	2	3	3
Aliphatic Dicarboxylic Acid	4	X	1	X
Alkanes (Paraffin Hydrocarbons)	4	2	1	X
Alkanesulfonic Acid	4	2	1	X
Alkazene	4	4	2	2
Alkenes (Olefin Hydrocarbons)	4	X	1	X
Alkyl Acetone	1	2	3	X
Alkyl Alcohol	4	2	1	X
Alkyl Sulfide	4	X	1	X
Alkylnaphthalene Sulfonic Acid	4	2	1	X
Allyl Chloride	4	X	1	X
Allylidene Diacetate	1	2	3	X
Alpha Picoline	1	2	3	X
Aluminum Acetate	1	4	4	2
Aluminum Bromide	1	1	1	1
Aluminum Chlorate	1	2	3	X
Aluminum Chloride	1	2	1	1
Aluminum Ethylate	X	X	X	X
Aluminum Fluoride	1	2	1	1
Aluminum Fluorosilicate	X	X	X	X
Aluminum Formate	1	2	3	X
Aluminum Hydroxide	1	2	2	1
Aluminum Linoleate	4	2	1	X
Aluminum Nitrate	1	2	1	1
Aluminum Oxalate	1	2	3	X
Aluminum Phosphate	1	2	1	1
Aluminum Potassium Sulfate	1	2	3	X
Aluminum Salts	1	1	1	1
Aluminum Sodium Sulfate	1	2	3	X
Aluminum Sulfate	1	1	1	1
Alums-NH3 -Cr -K	1	1	4	2
Ambrex 33 (Mobil)	4	4	1	2
Ambrex 830 (Mobil)	3	2	1	2
Amines-Mixed	2	2	4	3
Aminoanthraquinone	X	X	X	X
Aminoazobenzene	X	X	X	X
Aminobenzene Sulfonic Acid	X	X	X	X
Aminobenzoic Acid	X	X	X	X
Aminopyridine py	X	X	X	X
Aminosalicylic Acid	X	X	X	X
Ammonia (Anhydrous)	1	2	4	2
Ammonia and Lithium Metal in Solution	2	4	4	3
Ammonia, Gas, Cold	1	1	4	2
Ammonia, Gas, Hot	2	X	4	2
Ammonia, Liquid (Anhydrous)	1	2	4	2
Ammonium Acetate	1	2	3	X
Ammonium Arsenate	1	2	3	X
Ammonium Benzoate	1	2	3	X
Ammonium Bicarbonate	1	2	3	X
Ammonium Bisulfite	1	2	3	X
Ammonium Bromide	1	X	1	1
Ammonium Carbamate	1	2	3	X
Ammonium Carbonate	1	X	1	1
Ammonium Chloride, 2N	1	X	1	1
Ammonium Citrate	1	2	3	X
Ammonium Dichromate	1	2	3	X
Ammonium Diphosphate	1	2	3	X
Ammonium Fluoride	1	X	1	1

Legend:

• 1 = Satisfactory
• 2 = Fair
• 3 = Doubtful
• 4 = Unsatisfactory
• X = Insufficient Data

Solenoid Valve Principle of Operation

Understanding the principle of operation is fundamental for proper selection. A solenoid valve uses an electrical current to generate a magnetic field. This field then actuates a mechanism to control fluid flow.

The core components include a coil, a plunger (or armature), and a valve body with an orifice. When electrical current flows through the coil, it creates an electromagnetic field. This field pulls the plunger, which is typically made of a ferromagnetic material, against a spring. This movement either opens or closes the valve’s orifice, thereby controlling the flow of media. When the current stops, the magnetic field collapses, and the spring returns the plunger to its original position. This action restores the valve to its default state (either normally open or normally closed).

Direct-acting valves use the solenoid’s magnetic force directly to open or close the orifice. Pilot-operated valves use a smaller pilot solenoid to control a larger main valve. The pilot valve opens or closes, allowing system pressure to act on a diaphragm or piston, which then operates the main valve. Pilot-operated valves can handle higher flow rates and pressures with a smaller electrical coil.

Pipe Diameter and Thread Type for Solenoid Valve Integration

Proper integration of the solenoid valve into the piping system requires careful attention to pipe diameter and thread type. Incompatible threads lead to leaks, damage, and safety hazards.

National Pipe Thread Taper (NPT) threads are common in North American piping systems. Their tapered design ensures a tight seal, preventing leaks. Industries such as plumbing, HVAC, and pharmaceutical manufacturing widely use NPT threads. The American National Standard for Tapered Pipe Threads (ANSI/ASME B1.20.1) defines NPT threads. This standard ensures consistency in size and form for reliable connections. Sealants are typically necessary with NPT threads to achieve a leak-tight joint.

Other American thread types include NPSF (National Pipe Straight Fuel) and NPSC (American Standard Straight Coupling Pipe Thread). NPTF (American Standard Pipe Thread Tapered – Dryseal) is a self-sealing variant that does not require sealants.

British Standard Pipe (BSP) is the standard in Commonwealth countries and Australia. BSP includes two main types: BSPP (British Standard Pipe Thread Parallel) and BSPT (British Standard Pipe Thread Tapered). BSPP threads require a bonded seal ring for sealing. BSPT threads use metal wedging for sealing.

NPT and BSP threads are incompatible. They differ in flank angles (60° for NPT vs. 55° for BSP), thread pitch, and taper angle. Mixing them can result in incomplete sealing, thread stripping, and pressure leaks or safety hazards. Both BSP and NPT are inch-based systems, but their inch designations do not represent the actual diameter.

The following table summarizes key differences between NPT and NPTF threads:

Feature	NPT	NPTF
Thread Type	Tapered	Tapered
Sealant Needed	Yes	No (Dryseal)
Self-Sealing	Partial	Yes
Common Use	General plumbing	Hydraulic/Fuel Systems

Globally, NPT and NPTF are common in the USA. BSPP and BSPT are prevalent in the UK and Europe. Asia commonly uses BSP. Global OEMs may use mixed standards, requiring verification for specific applications.

This table shows common thread types by region:

Region	Common Thread Types
USA	NPT, NPTF
UK / Europe	BSPP, BSPT
Asia	BSP (commonly)
Global OEMs	Use mixed standards — always verify

Here is a list of common thread acronyms:

Acronym	Description
NPT	American Standard Pipe Taper Thread (National Pipe Thread)
FPT	American Standard female Pipe Taper Thread
NPSC	American Standard Straight Coupling Pipe Thread
BSP	British Standard Pipe (can mean either BSPP or BSPT)
BSPP	British Standard Pipe Parallel
BSPT	British Standard Pipe Taper
GHT	Garden Hose Thread
G Thread	British Gas Parallel (same as BSPP)
R Thread	British Tapered (same as BSPT)

Electrical Requirements for Solenoid Valve Power

Engineers must carefully consider the electrical requirements for a solenoid valve. The power supply must match the valve’s specifications for reliable operation. Incorrect electrical parameters can lead to performance issues or premature failure.

Solenoid valve coils typically operate at specific frequencies, either 60 Hertz or 50 Hertz. The voltage requirements also vary. Common DC voltages include 24V and 48V. For AC applications, engineers often encounter 127V, 220V, and 380V. These voltages are not universal; they depend on the region. For example, in the United States and Canada, 120/240V single-phase and 208/240V three-phase systems are common at 60Hz. Conversely, many European countries like Germany and Sweden use 230V single-phase and 380V three-phase at 50Hz.

Country/Region	Voltage (Single Phase)	Voltage (Three Phase)	Frequency
Argentina	220V	380V	50Hz
Brazil	110/220V	380/460V	60Hz
Canada	120/240V	208/240V	60Hz
Mexico	127/220V	220V	60Hz
United States	120/240V	208/240V	60Hz
Australia/New Zealand	240/415V	415V	50Hz
Hong Kong	120/220V	220V	50Hz
India	230V	N/A	50Hz
Indonesia	230V	380V	50Hz
Japan	100/200V	200V	50Hz
Korea	220V	380V	60Hz
Malaysia	220-240V	N/A	50Hz
Philippines	220V	N/A	60Hz
Singapore	230V	400V	50Hz
Taiwan	110/220V	220V	60Hz
Thailand	220V	380V	50Hz
Vietnam	120/220V	220V	50Hz
Denmark	230V	380V	50Hz
Finland	230V	380V	50Hz
Germany	230V	380V	50Hz
Hungary	230V	380V	50Hz
Lithuania	230V	380V	50Hz
Poland	230V	380V	50Hz
Slovakia	230V	380V	50Hz
Slovenia	230V	380V	50Hz
Sweden	230V	380V	50Hz
Czech Republic	230V	380V	50Hz
Croatia	230V	380V	50Hz
Norway	230V	380V	50Hz
Switzerland	230V	380V	50Hz
Ukraine	230V	380V	50Hz
Russia	230V	380V	50Hz

Voltage fluctuations significantly impact coil performance and lifespan. The magnetic force generated by a solenoid varies with the square of the applied voltage. A 10% voltage drop can reduce this force by approximately 19%, potentially causing incomplete valve switching. Most solenoid valves require a minimum pickup voltage of 85% of the nominal voltage for reliable switching. Below this threshold, the magnetic force may be insufficient for actuation. As coil temperature increases, electrical resistance rises, further reducing current and magnetic force. This exacerbates voltage variation problems, especially in high-temperature environments.

Operating outside voltage tolerance leads to several negative consequences:

• Reduced Switching Speed: The valve reacts slower than intended.
• Increased Coil Heating: Excessive heat damages insulation and reduces lifespan.
• Shortened Service Life: Components wear out faster.
• Potential System Failures: Inconsistent operation can disrupt processes.

Low voltage is generally more problematic than moderate overvoltage. Insufficient voltage causes valves to fail to switch completely, exhibit slow response times, or chatter. This leads to inconsistent pneumatic system operation. Conversely, excessive voltage increases coil current, accelerating insulation aging and reducing service life. Engineers should avoid sustained operation above 110% of the nominal voltage. Voltage-related valve issues can cause pressure instabilities, timing errors, and reduced overall equipment effectiveness (OEE) in pneumatic systems. Valves operating outside voltage tolerance require more frequent maintenance and earlier replacement due to accelerated coil burnout, contact welding, and mechanical wear.

Environmental Ratings for Solenoid Valve Protection

The operating environment dictates the necessary protection for a solenoid valve. Environmental ratings ensure the valve withstands external conditions, preventing damage and ensuring safety.

Ingress Protection (IP) ratings classify the degree of protection mechanical casings and electrical enclosures provide against foreign bodies like dust and moisture. The International Electrotechnical Commission (IEC) established the IP rating system, defined in IEC standard 60529. An IP rating consists of two digits. The first digit indicates protection against solid particles, and the second digit indicates protection against liquids. For instance, an IP-65 rating means the enclosure is dust-tight and can resist 6.3 mm nozzle water jets from any direction. These ratings apply to coils and electrical enclosures.

For outdoor non-hazardous environments, engineers consider several NEMA ratings:

• Type 3: Protects against falling dirt, windblown dust, rain, sleet, snow, and external ice formation.
• Type 3X: Offers similar protection to Type 3, with added corrosion resistance.
• Type 4: Guards against falling dirt, windblown dust, rain, sleet, snow, splashing water, hose-directed water, and external ice formation.
• Type 4X: Provides Type 4 protection with added corrosion resistance.
• Type 6: Protects against falling dirt, hose-directed water, temporary submersion at a limited depth, and external ice formation.
• Type 6P: Offers protection against falling dirt, hose-directed water, prolonged submersion at a limited depth, added corrosion protection, and external ice formation.

For hazardous locations, specific NEMA ratings apply:

• Type 7: Suitable for indoor use in Class I, Division 1, Groups A, B, C, or D hazardous locations.
• Type 8: Designed for indoor or outdoor use in Class I, Division 1, Groups A, B, C, and D hazardous locations.
• Type 9: Intended for indoor use in Class II, Division 1, Groups E, F, or G hazardous locations.
• Type 10: Meets the requirements of the Mine Safety and Health Administration (30 CFR, Part 18).

Performance and Reliability of Your Solenoid Valve

Engineers must thoroughly assess a solenoid valve’s performance and reliability. These factors directly influence operational efficiency, maintenance costs, and overall system longevity. Selecting a valve with robust performance characteristics ensures consistent and dependable industrial processes.

Solenoid Valve Cycle Life and Durability

A solenoid valve’s cycle life and durability are critical indicators of its long-term reliability. Several factors determine how long a valve performs effectively.

• Heating: A high working duty cycle, where the valve remains energized for 80% to 100% of the time, significantly increases coil heating. Overheating can break down insulation, reduce magnetic force, and accelerate wear on mechanical parts, shortening the solenoid’s lifespan.
• Wear: The duty cycle directly influences wear and tear. Each time the solenoid energizes and the plunger moves, friction generates. High-frequency operation increases wear on the plunger, coil, and mechanical components, leading to performance degradation and eventual failure.
• Electrical Stress: High duty cycle operation subjects the solenoid to greater electrical stress. Repeated on-off cycles can cause arcing at contacts, leading to corrosion and product failure. High-frequency switching can also generate electromagnetic interference (EMI), affecting the solenoid’s performance and related electronic components’ lifespan.
• Frequency of Use: Solenoid valves in high-cycle or continuous applications wear out more quickly than those used intermittently.
• Operating Conditions: Exposure to extreme temperatures, high pressures, corrosive fluids, or contaminants can significantly reduce a solenoid valve’s lifespan.
• Quality of Materials: High-quality materials, such as corrosion-resistant metals like stainless steel, significantly extend a solenoid valve’s lifespan, especially in harsh environments. Cheaper materials can lead to premature breakdown and corrosion.
• Maintenance: Regular maintenance, including cleaning and inspecting for leaks or wear, is crucial for extending a solenoid valve’s operational life.

Choosing high-quality solenoid valves from reputable manufacturers ensures better durability and reliability. Engineers should verify adherence to industry certifications and select materials compatible with process chemicals.

Response Time of the Solenoid Valve

Solenoid valve response time refers to the speed at which the valve opens or closes after receiving an electrical signal. This factor significantly impacts process control accuracy and system efficiency.

Valve Type	Typical Response Time
Direct-Acting 2-Way	5-12ms
Direct-Acting 3-Way	8-15ms
Pilot-Operated 4-Way	15-30ms
Proportional Control	10-25ms (variable)
High-Speed Specialty	2-8ms

Direct-acting valves offer the quickest response times because the solenoid directly controls the main valve seat. This eliminates delays associated with pilot pressure buildup. Pilot-operated valves require time for pilot pressure to accumulate and activate the main valve, contributing to their longer response times. However, they handle higher flow rates and pressures compared to direct-acting designs.

A quick response time is crucial for industrial solenoid valves. It allows accurate and swift control of fluid or gas flow. Slow response times prevent the system from reacting fast enough to maintain desired parameters, leading to inefficiencies.

• Enhances System Efficiency: Faster response times ensure systems operate efficiently with minimal delays, preventing bottlenecks and increasing production speed.
• Reduces System Downtime: Slow valve responses cause operational delays that ripple through industrial systems, disrupting calibrated processes and halting production.
• Extends the Life of Connected Components: Systems experience less stress when valves respond as expected. Slow response valves cause inconsistencies that place excessive physical demands on pumps, pipes, or control actuators, accelerating wear.
• Increases Safety in Critical Applications: Medical devices, aerospace systems, or fire suppression rely on precise regulation. Delayed valves can lead to catastrophic failures or spread of hazards.

Power Consumption of the Solenoid Valve

Power consumption is an important consideration for solenoid valves, especially in large-scale industrial operations or battery-powered applications. The electrical power required to energize the coil directly impacts operating costs and system design. Factors influencing power consumption include the coil’s design, the operating voltage, and the valve’s duty cycle. Continuous operation of a high-power coil consumes more energy than intermittent use of a low-power coil. Engineers often seek energy-efficient valve designs to minimize electricity usage and reduce the thermal load on the system. Low-power coils are available for applications where energy conservation is a priority, balancing performance with efficiency.

Maintenance and Serviceability of the Solenoid Valve

Regular maintenance and serviceability significantly extend a solenoid valve’s operational life and ensure consistent performance. Engineers must implement a proactive maintenance strategy. This approach prevents unexpected failures and minimizes downtime. Solenoid valves typically require maintenance every 6 to 12 months. However, the valve’s design and application dictate the servicing frequency. Harsh conditions or aggressive media often necessitate more frequent attention.

Maintenance procedures involve several critical steps. Engineers ensure the power supply matches the coil specifications. They also confirm the coil effectively expels heat with proper ventilation. When fitting a new coil, technicians do not power it until securely mounted on the valve. They check for and dry any moisture within the coil. They replace armatures if damaged or bent. Incorporating electrical surge protection, such as circuit breakers or MCBs, prevents damage from electrical spikes. An upstream filter keeps impurities out of the valve. This prevents debris from limiting armature motion, which can cause the coil to overheat. Technicians regularly inspect valve response time and calibration. This ensures optimal performance and helps troubleshoot potential issues in advance.

During servicing, engineers inspect seals, O-rings, and membranes for damage or wear. They replace these components if necessary. They also search for dirt particles and solid contaminants in pipe connections and valve openings. These contaminants include machining dust, sand, or corrosion. Technicians clean all elements thoroughly to ensure optimal performance before reassembling the unit.

Several signs indicate a solenoid valve requires attention. These include reduced flow output from the valve. The valve might produce a chattering noise when energized. It may not energize when power is applied. The valve could also become sluggish or stick in position. The solenoid valve might not open. The presence of internal or external leakage also signals a problem.

Deciding between repair and replacement depends on several factors. For simple designs, replacement may be more cost-effective than repair. Intricate designs requiring precision or costly materials often recommend repair over replacement. A general approach involves repairing rubber parts and springs if damaged. However, if other parts show significant wear or damage, a solenoid valve replacement becomes necessary. Engineers consider the risk of hazards during failure, especially in critical industries like chemical or nuclear. Rigorous maintenance and immediate replacement are crucial in these sectors. They evaluate the opportunity cost of valve failure. Downtime during production runs can lead to significant revenue loss. This necessitates regular inspection and maintenance. Engineers also assess the financial cost of valve failure. This can include scrapped work, damaged equipment, and lost productivity. This highlights the need for a proactive maintenance plan. Balancing the cost of service against the potential cost of failure is essential. In some cases, regular replacement might be more cost-effective than continuous maintenance and repairs.

Special Considerations for Solenoid Valve Selection

Beyond fundamental technical specifications, engineers must consider several special factors. These considerations ensure optimal safety, operational flexibility, and compliance in diverse industrial environments. Addressing these aspects prevents costly failures and enhances system reliability.

Safety Certifications for Industrial Solenoid Valves

Safety certifications are crucial for industrial solenoid valves. They confirm compliance with regional and industry-specific safety standards. For instance, CE Certification (Conformité Européenne) is mandatory for selling 220V air solenoid valves in the European market. It signifies adherence to EU health, safety, and environmental protection requirements, including proper insulation and electromagnetic compatibility. In North America, UL Certification (Underwriters Laboratories) is primarily required. UL tests products for electrical components, high-temperature resistance, and mechanical integrity.

Solenoid valves used in potentially explosive atmospheres, such as oil and gas or chemical processing, require ATEX Certification. This European directive ensures equipment prevents ignition of explosive mixtures, often through flameproof enclosures or intrinsically safe electrical circuits. Similarly, IECEx approvals are vital for hazardous area locations like Zone 1 and Zone 2. Manufacturers like ASCO offer ATEX-certified solenoid valves for critical flow control in these environments. These valves include various types, such as 3 & 4 Way Solenoid Valves and Ex d Flameproof Valves, ensuring continuous and safe operation. ISO certifications, like ISO 9001 for quality management, also demonstrate a manufacturer’s commitment to consistent product quality. For a deeper understanding of common valve certifications, including CE, RoHS, UL, CSA, and NSF, Electric Solenoid Valves provides a comprehensive blog post detailing their significance and application in the industry.

Manual Override Options for Solenoid Valves

Manual override options provide essential operational flexibility for solenoid valves. These features allow personnel to operate the valve without electrical power. This is particularly beneficial during power failures or for system setup and testing. Manual overrides allow momentary opening, closing, or locking of valves without disturbing electrical sequencing or piping. They are a mandatory feature in automobiles for opening car doors with or without electric power.

Manual overrides are often built directly into the valve body. They do not affect normal operation unless actuated. This feature adds only marginally to the valve’s cost. It also allows actuating a single solenoid valve in an array without affecting the electrical sequencing or piping of other valves.

Explosion-Proof Solenoid Valve Designs

Explosion-proof solenoid valve designs are mandatory in environments with explosion risks, such as oil refineries, chemical plants, and turbine manufacturing. These valves prevent sparks or heat from igniting the atmosphere. Their design incorporates fail-proof or fail-safe technologies. Enclosures have an above-grade factor of safety to withstand system pressure and temperature.

Key design principles include:

• Intrinsically Safe Electrical Circuits: These circuits limit energy levels, preventing ignition risks.
• Sealing Mechanisms and Material Choices: Sealing materials must withstand system pressure and chemical aggression. Valve bodies use materials resistant to corrosion, erosion, and reactions from high temperatures.
• External Safety Features: Robust external enclosures, often stainless steel, protect internal components. Well-insulated and grounded electrical connections, adequate moisture protection, and pressure relief mechanisms are also crucial.

Explosion-proof valves are also used in industrial dust extraction systems, particularly with blast gates, where manual control is removed. They are essential for high-pressure applications, compressed natural gas systems, oxygen and acetylene equipment, autoclaves, and pollution controls.

Proportional Control Solenoid Valve Capabilities

Proportional control solenoid valves offer precise and continuous modulation of fluid flow. Unlike standard on/off valves, these advanced devices adjust their opening based on an electrical input signal. This capability allows for variable control of flow rate, pressure, or position within a system. Engineers use them in applications demanding high accuracy and fine-tuning.

The operational differences between proportional and on/off solenoid valves are significant:

Feature	Proportional Control Solenoid Valves	On/Off Solenoid Valves
Functionality	Precisely control fluid flow, pressure, or direction in proportion to an electrical input signal.	Act as simple on/off switches, either fully open or fully closed.
Control Type	Analog or digital control, allowing for variable output.	Discrete control (binary: on or off).
Output	Continuously variable flow rate, pressure, or position.	Fixed flow rate or pressure when open.
Complexity	More complex design, often involving feedback mechanisms and advanced electronics.	Simpler design, typically consisting of a coil, plunger, and valve body.
Cost	Generally higher due to precision components and control electronics.	Lower cost due to simpler construction.
Accuracy & Precision	High accuracy and precision in fluid control.	Lower precision, as they only provide two states.
Response Time	Can have a slower response time depending on the control system and required precision.	Generally faster response time for switching between states.
Energy Consumption	Can be higher, especially when maintaining a specific proportional state.	Lower, primarily consuming energy during switching and holding the open state.
Applications	– Industrial Automation: Robotics, process control, precise dosing. – Hydraulics & Pneumatics: Variable speed control, force control, precise positioning. – Medical Devices: Infusion pumps, diagnostic equipment. – HVAC Systems: Fine-tuning temperature and airflow. – Automotive: Engine management, transmission control.	– General Purpose: Water irrigation, fuel shut-off, air compressors. – Simple Automation: Opening/closing lines, basic fluid transfer. – Safety Systems: Emergency shut-off valves. – Household Appliances: Washing machines, dishwashers. – Irrigation Systems: Zone control.
Maintenance	May require more specialized maintenance due to complex electronics and calibration needs.	Simpler maintenance, often involving basic cleaning or coil replacement.
Feedback	Often incorporate feedback sensors (e.g., pressure transducers, flow meters) for closed-loop control.	Typically operate without feedback, relying on open-loop control.
Signal Input	Accepts variable electrical signals (e.g., 0-10V, 4-20mA, PWM).	Accepts a simple on/off electrical signal.
Fluid Handling	Suitable for precise control of various fluids, including gases and liquids, often in critical applications.	Suitable for general fluid handling where precise modulation is not required.
Wear and Tear	Can experience more wear on moving parts due to continuous modulation, but often designed for durability.	Less wear from continuous modulation, but can be subject to wear from frequent on/off cycling.
Installation	May require more complex installation and calibration procedures.	Simpler installation.

Proportional valves find use in diverse industrial automation tasks. They are essential for robotics, process control, and precise dosing systems. In hydraulics and pneumatics, they enable variable speed control, force control, and accurate positioning. Medical devices, such as infusion pumps, also rely on their precision. HVAC systems utilize them for fine-tuning temperature and airflow. Automotive applications include engine management and transmission control.

These valves offer high accuracy and precision in fluid control. They accept variable electrical signals like 0-10V or 4-20mA. This allows for continuous adjustment. Their design is more complex, often incorporating feedback mechanisms and advanced electronics. This complexity contributes to a higher cost and potentially more specialized maintenance requirements. However, their ability to provide continuously variable output makes them indispensable for critical applications where simple on/off control is insufficient.

---

A thorough and systematic selection process for industrial solenoid valves is crucial. This careful approach ensures optimal system integration. The right solenoid valve choice directly leads to enhanced operational efficiency, improved safety protocols, and significant long-term cost savings. For complex or unique applications, consulting with industry experts ensures optimal system performance and reliability.

FAQ

What is the difference between normally open and normally closed solenoid valves?

Normally closed valves block flow when unpowered. They open when energized. Normally open valves allow flow when unpowered. They close when energized. The choice depends on the application’s default state and safety requirements.

Why is material compatibility important for solenoid valves?

Material compatibility prevents premature wear, leakage, and system failure. The valve body and seal materials must withstand the media’s chemical properties and operating conditions. Incompatible materials lead to corrosion and degradation.

How does temperature affect solenoid valve performance?

Extreme temperatures impact coil and seal longevity. High temperatures can degrade insulation and seals, reducing magnetic force. Low temperatures can make seals brittle and affect fluid viscosity. Both extremes compromise reliability.

What does an IP rating mean for a solenoid valve?

An IP rating indicates the valve’s protection against solid particles and liquids. The first digit specifies solid protection (e.g., dust), and the second digit specifies liquid protection (e.g., water jets). This ensures the valve withstands environmental conditions.

When should one choose a proportional control solenoid valve?

Engineers choose proportional control solenoid valves for precise and continuous fluid flow modulation. Unlike on/off valves, these devices adjust their opening based on an electrical signal. They are essential for applications demanding high accuracy and fine-tuning.
