Choosing the right Solenoid Valve depends on your system’s demands. A Direct Acting Solenoid Valve often suits applications needing a zero differential pressure solenoid valve, rapid response, or compact size. For instance, a 2/2 Way Solenoid Valve in a small space might be direct-acting. Conversely, pilot-operated valves excel with high flow rates, larger pipes, and consistent pressure differentials. Understanding normally closed vs normally open 2-way valve types is also vital. Always review Senya stainless steel valve specifications to ensure optimal performance for your specific needs.
Key Takeaways
- Direct-acting valves work best for low pressure, quick tasks, or dirty liquids. They open and close fast.
- Pilot-operated valves are good for high flow, large pipes, and saving energy. They need some pressure to work.
- Consider how much pressure your system has and how much fluid moves. This helps you pick the right valve.
- Direct-acting valves cost less to buy but use more power. Pilot-operated valves cost more at first but save money on electricity.
- Always match the valve’s parts, like seals, to the liquid it controls. This stops leaks and makes the valve last longer.
Key Factors for Valve Selection
Choosing the right valve for your system involves looking at several important factors. These include how much pressure your system has, how much fluid needs to move, and how quickly the valve must react.
Pressure Requirements and Differential
Pressure plays a big role in valve selection. Direct-acting valves work well in systems with low, zero, or even negative pressures. They are suitable for applications where the pressure is less than 300 psi. For example, a direct-acting DC 24V Solenoid Valve might handle pressures up to 100 psi, and some specific models can manage up to 230 psi. This makes them a good choice when you do not have much pressure to work with. On the other hand, pilot-operated valves need a certain amount of pressure to function. They typically require a minimum inlet pressure or differential pressure of 5 PSI to operate correctly. This means they are not ideal for systems with very low or no pressure differences.
Flow Rate and Pipe Size
The amount of fluid you need to move and the size of your pipes also guide your choice. Direct-acting valves are best for controlling small amounts of fluid. Their flow capabilities are limited, making them perfect for low flow rates. Often, their orifice diameter is restricted to about 25mm. For instance, a 2-way direct-acting valve might work with ½” to 1” line sizes. When you need to move a lot of fluid through larger pipes, pilot-operated valves become the better option. They can handle high flow rates and are compatible with larger pipe sizes, such as 1/2″ up to 3″ for certain models.
Response Time Needs
How quickly your valve needs to open or close is another critical factor. Direct-acting valves are known for their speed. They typically open in about 10 to 100 milliseconds. Their closing times are usually just as fast. This quick response makes them ideal for applications that need immediate action, like certain industrial automation processes. If your system demands very fast on-off cycles, a direct-acting valve is often the best choice.
Cost and Efficiency Considerations
When you choose a valve, you also think about money and how well it works. Direct-acting solenoid valves often cost less to buy at first. They are usually 20-40% cheaper than pilot-operated valves. This is because they have a simpler design and fewer parts. This makes them a good choice if you need to save money on the initial purchase.
However, you also need to think about how much power the valve uses over time. This affects your electricity bill. Look at this table to see the difference:
| Solenoid Valve Type | Power Consumption (W) | Notes |
|---|---|---|
| Pilot-operated | 0.1 – 0.2 | Uses very little power, good for long use, saves energy, less likely to burn out |
| Direct-acting | 5 – 20 | Uses more power, can burn out if used too often with high power |
As you can see, direct-acting valves use more power than pilot-operated ones. A direct-acting valve might use 5 to 20 watts, while a pilot-operated valve uses only 0.1 to 0.2 watts. This means pilot-operated valves are more energy-efficient, especially if they stay on for a long time. They are also less likely to burn out because they use so little power. So, while direct-acting valves might be cheaper to buy, pilot-operated valves can save you money on electricity in the long run. You must balance the upfront cost with the ongoing energy use for your specific application.

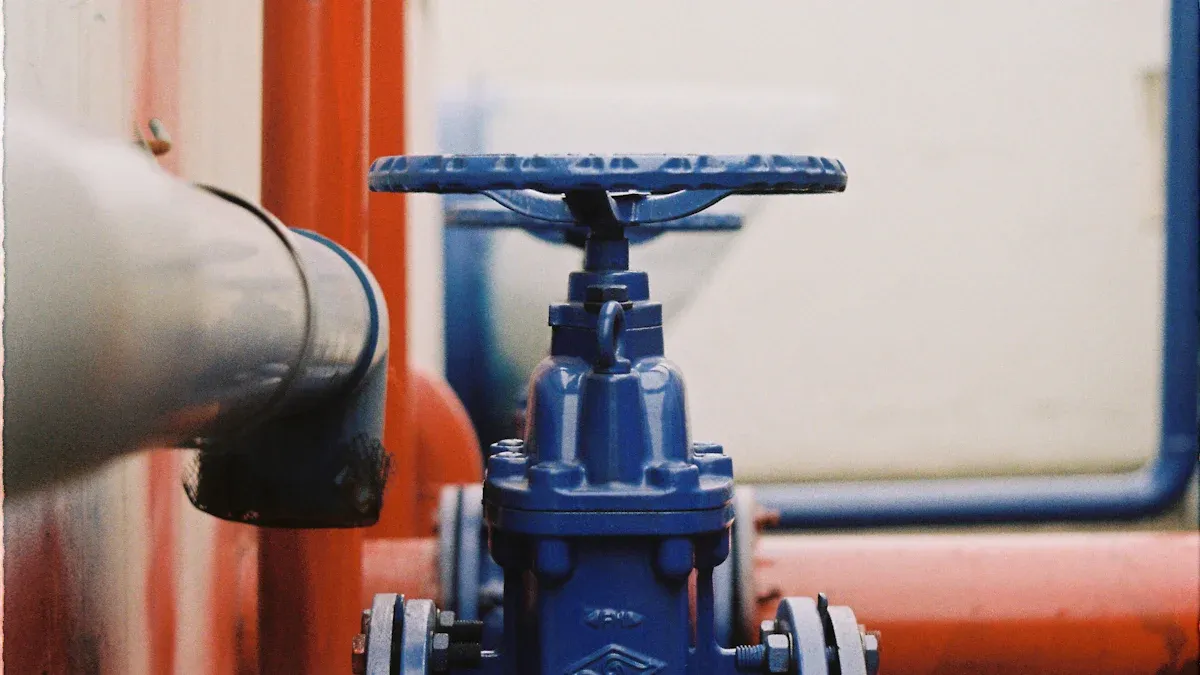

Understanding Direct-Acting Solenoid Valves
How Direct-Acting Valves Operate
Direct-acting valves work in a straightforward way. They rely only on electromagnetic force to move a part called a plunger inside the valve body. This movement either opens or closes the flow path. The plunger converts the electrical energy from the solenoid coil into mechanical action. It moves against the media pressure and spring tension without needing any pilot control. The valve body holds all the internal parts and guides the media flow. A key component is the orifice, which is the opening that controls how much fluid can pass through. Its size directly affects the valve’s flow capacity.
Advantages of Direct-Acting Valves
Direct-acting valves offer several benefits. They work well in systems with low, zero, or even negative pressures, especially those below 100 psi. These valves are known for their quick response times, opening and closing rapidly. This provides immediate control over fluid flow. They also offer fast and reliable operation. Because they have fewer moving parts, direct-acting valves often show enhanced durability and require less maintenance. This leads to reliability and minimal downtime for the system. They also have a long life due to their simple design.
Ideal Applications for Direct-Acting Valves
Many industrial settings prefer direct-acting valves for specific tasks. They are perfect for low-pressure systems and gravity-fed flows. Applications with very small flow rates, such as chemical dosing systems or precise chemical feeders, often use them. You can find them in gas lines, medical dosing machines, and laboratory instruments. They are also common in small fuel gas systems and various low-pressure automation setups. In automation equipment, they control valve operations in hydraulic systems, regulate compressed air or gas flow, and manage fluid control in automated production lines or machinery.
Understanding Pilot-Operated Solenoid Valves
How Pilot-Operated Valves Operate
Pilot-operated valves work a bit differently than direct-acting ones. They use the system’s own pressure to help them open and close. Think of it like a two-stage process. A small pilot valve first opens, which then allows the main valve to operate. These valves typically include a valve body, a main valve, a pilot valve, a solenoid, and a spring. Inside, they might have a diaphragm or a piston for the main seal. Internal pilot-operated valves use a 2-way pilot solenoid operator. They often have a floating diaphragm that needs a pressure difference to work, or a coupled diaphragm/piston that can operate even with no pressure difference. These valves also feature a pilot orifice, a pilot channel, and a bleed orifice in the diaphragm. External pilot-operated valves use a separate pressure source to control the main valve. This setup involves a plunger, a pilot inlet orifice, and an exhaust port.
Advantages of Pilot-Operated Valves
Pilot-operated valves offer many benefits, especially for tougher conditions. They have a robust design because they connect directly to the process. This design helps them manage pressure without big disruptions or emergency shutdowns. They are built for high pressure and high flow systems, handling large forces easily. This means they can manage greater capacity in challenging process environments. These valves also help reduce exposure limits and the release of harmful substances into the environment. They allow systems to run closer to the set pressure of safety devices. This helps maintain safe and optimal pressure without stopping daily operations. They are also small and low profile, which makes them great for tight spaces or stacking in manifolds. They need less wiring, saving space, and often include a manual override for quick adjustments or emergencies.
Ideal Applications for Pilot-Operated Valves
You will find pilot-operated valves in many industrial settings where high performance is key. They are excellent for applications needing precise control of air or fluid flow, which helps save energy. Their reliability comes from fewer moving parts and a longer service life, even in harsh environments. They are also flexible, working with various media types, pressures, and flow rates. For example, in manufacturing, they control pneumatic systems for automated movements. In the food and beverage industry, they appear in conveyor systems and production lines for packaging. The oil and gas sector uses them for remote control and monitoring in pipelines and pressure relief systems. Pharmaceutical and medical fields rely on them for surgical instruments and automated testing equipment. Water treatment plants use them in filtration systems, pumps, and backwash processes.

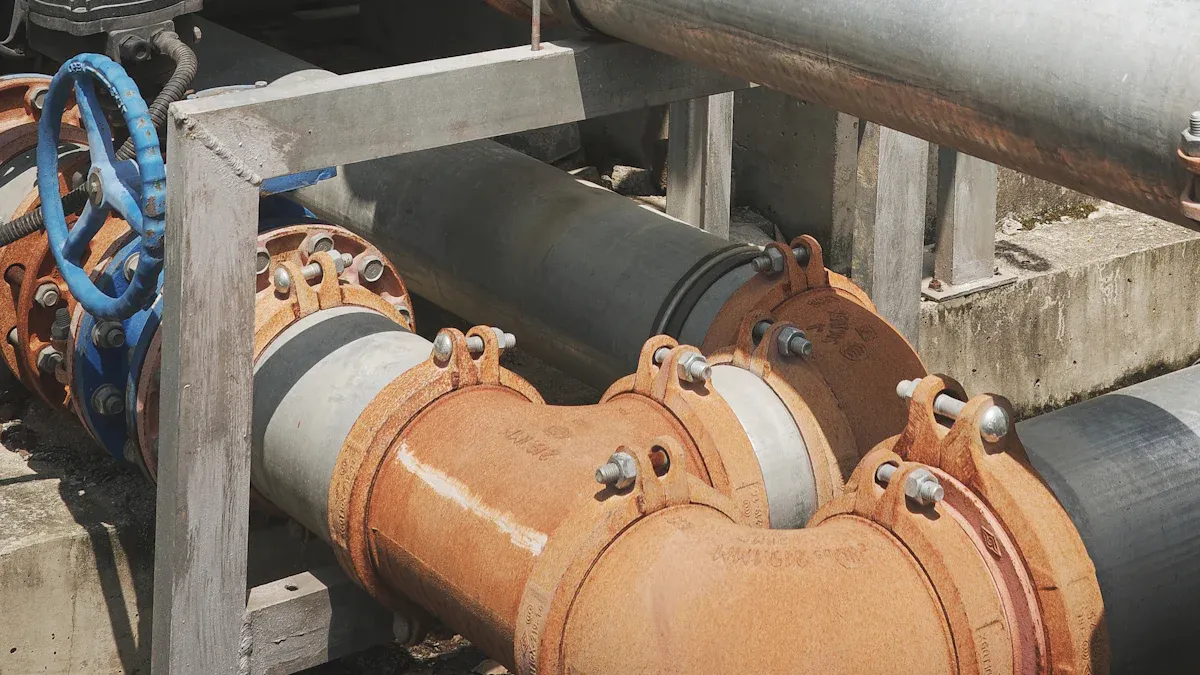

Direct-Acting vs. Pilot-Operated: A Comparative Analysis
Choosing between direct-acting and pilot-operated valves involves understanding their core differences. Each type offers unique benefits for specific system needs. Let’s explore these distinctions.
Pressure and Flow Capacity Differences
Direct-acting valves excel in systems with low or zero pressure. They do not need a pressure differential to operate. This makes them perfect for gravity-fed lines or vacuum applications. However, their flow capacity is generally smaller. They handle smaller pipe sizes and lower volumes of fluid. In contrast, pilot-operated valves require a minimum pressure differential to function. They use this pressure to assist in opening and closing the main valve. This design allows them to manage much higher flow rates and larger pipe diameters. They are the go-to choice for applications moving significant amounts of fluid.
Response Time and Power Consumption
Response time is crucial in many applications. Direct-acting valves offer very fast response times. They open and close quickly because the solenoid directly moves the valve’s sealing element. This speed comes with a trade-off: higher power consumption. They need more electrical power to generate the force required for direct operation. Pilot-operated valves, on the other hand, have a slightly slower response. The pilot stage must activate first, which then triggers the main valve. However, they consume significantly less power. This makes them more energy-efficient for applications where the valve stays open for long periods.
Cost and Complexity Comparison
Direct-acting valves typically have a lower initial cost. Their design is simpler, with fewer components. This simplicity also often translates to easier maintenance. For example, when you install a new Solenoid Valve, you should always verify the power supply matches coil specifications and ensure good ventilation. You also need to check for moisture and inspect seals or O-rings regularly. Cleaning pipe connections and valve openings is also important to prevent issues. Pilot-operated valves are generally more expensive upfront due to their more intricate design. They involve a two-stage operation, which adds to their complexity.
Media Compatibility and Contamination
Direct-acting valves are often a better choice for systems with dirty or viscous media. Their straightforward design makes them less prone to clogging from particles. They can handle media that might foul the small pilot passages of pilot-operated valves. Pilot-operated valves, with their small internal pilot channels, are more susceptible to issues from contaminants. Dirty media can easily block these passages, causing the valve to malfunction. Therefore, systems using pilot-operated valves often require cleaner media or additional filtration.
Media Compatibility and Contamination
Direct-acting valves often make a better choice for systems with dirty or thick media. Their simple design makes them less likely to clog from particles. They can handle media that might foul the small pilot passages of pilot-operated valves. Pilot-operated valves, with their small internal pilot channels, are more sensitive to issues from contaminants. Dirty media can easily block these passages, causing the valve to stop working correctly. Therefore, systems using pilot-operated valves often need cleaner media or extra filtration.
Beyond the valve’s operation, the materials it uses also matter a lot. The seal material inside the valve must be compatible with the fluid it controls. Different fluids require different seal materials to prevent leaks and ensure long-lasting performance.
Here are some common seal materials and their compatibility:
| Material | Compatibility | Temperature Range | Disadvantages/Notes |
|---|---|---|---|
| NBR (Nitrile Rubber) | Compressed air, neutral gases, mineral oils | -5°C to 80°C | Degrades with ozone or above 90°C, turns brittle |
| EPDM (Ethylene Propylene Diene Monomer) | Hot water, glycol, low-pressure steam | 120°C to 140°C | Incompatible with oil (swells significantly) |
| FKM (Viton®) | Aggressive oils, solvents, fuel | Up to 150°C | Not ideal for steam (hydrolysis over time) |
| PTFE (Teflon) | Almost all industrial fluids | 180°C to 200°C | Non-elastomeric (rigid), requires higher spring force, nominal leak rate possible |
Choosing the right seal material is crucial for the valve’s success. Each material offers unique benefits and drawbacks for specific applications.
Consider these materials for their strengths and weaknesses:
| Material | Advantages | Disadvantages | Common Applications |
|---|---|---|---|
| Viton (FKM) | Excellent chemical resistance, high temperatures | High cost, less flexible at low temperatures | Chemical processing, oil & gas, aggressive fluids |
| PTFE (Teflon) | Supreme chemical resistance, very low friction | Lower mechanical strength, prone to creep | Food & beverage, sanitary, highly corrosive substances |
| NBR (Nitrile Rubber) | Good oil and petroleum resistance, versatile | Limited chemical resistance, degrades at higher temperatures | Hydraulics, pneumatics, general-purpose valves |
| EPDM | Excellent for water, steam, mild chemicals | Poor resistance to oils and hydrocarbons | Water treatment, irrigation systems, steam valves |
You must match the valve’s internal components, especially the seals, to the media. This prevents corrosion, swelling, or degradation, ensuring the valve works reliably.
Choosing the Right Solenoid Valve for Your Application
Selecting the correct solenoid valve for your system is a crucial decision. It directly impacts performance, safety, and efficiency. You must carefully consider the specific demands of your application. This involves looking at pressure, flow, and response time.
Applications Requiring Zero Differential Pressure
Some systems operate with very low or even no pressure difference across the valve. In these situations, direct-acting valves are the best choice. They do not need a pressure differential to open or close. This makes them highly reliable for specific tasks.
Consider these applications where direct-acting valves excel:
- Irrigation Systems: They ensure consistent water distribution in drip irrigation and sprinkler systems. This works well even with low water pressure.
- HVAC Systems: These valves efficiently manage fluid flow during low-load conditions in heating, ventilation, and air conditioning units.
- Industrial Processes: Manufacturers use them in chemical processing, food and beverage production, and pharmaceutical manufacturing. They control liquid and gas flow where pressure fluctuations could impact product quality.
- Medical Equipment: Direct-acting valves provide precise flow control at low pressures. You find them in devices like dialysis machines, anesthesia machines, and infusion pumps.
- Water Treatment: They allow for accurate low-volume chemical dosing in water purification systems.
- Laboratory Applications: Researchers use them due to their precise control and ability to handle delicate fluids in experiments and research.
Direct-acting valves offer the necessary precision and reliability for these sensitive environments.
High Flow and Large Pipe Diameter Systems
When your system needs to move a lot of fluid through large pipes, pilot-operated valves become the superior option. Their design allows them to handle significant volumes and pressures efficiently. They use the system’s own pressure to assist in their operation.
Pilot-operated valves offer many performance benefits for high flow systems:
- Increased Capacity: These valves manage large flows efficiently. They separate the pilot and main valve. This allows them to handle significant volumes without losing control or stability. This is ideal for systems with large and variable flows.
- Stable and Accurate Pressure Control: They offer precise control of downstream pressure. They rapidly adjust the main valve in response to pressure fluctuations. This ensures stable outlet pressure even with varying upstream pressure or flow demands.
- Reduced Wear and Longer Life: The main valve experiences less mechanical stress and wear. The pilot valve modulates it indirectly. This leads to an extended lifespan. It makes these regulators more durable and cost-effective for long-term, high-demand operations.
- Reduced Actuation Forces and Maintenance: The pilot valve needs minimal force to operate the main valve. This results in quieter operation and less frequent maintenance. This is crucial for critical infrastructure or remote sites where downtime is costly.
- Improved Sensitivity and Responsiveness: Pilot-controlled regulators detect and react to minor pressure changes with high sensitivity. This is vital in high-flow applications. Even small fluctuations can affect system performance, safety, or product quality.
- Flexibility and Adaptability: Their design allows for easier adjustment of setpoints and response characteristics. Operators can often do this remotely. This helps optimize system performance without replacing equipment. This is beneficial in dynamic industrial settings.
- Energy Efficiency: They maintain downstream pressure more accurately. They also minimize pressure drops and fluctuations. This helps optimize energy consumption in upstream compressors or pumps. It contributes to sustainability and operational cost savings.
These advantages make pilot-operated valves indispensable for large-scale industrial processes.
Critical Fast Response Time Applications
In many industrial and safety-critical applications, the speed at which a valve opens or closes is paramount. A slow valve response can have severe consequences. It can escalate incidents into disasters.
For example, in hydraulic systems, slow valve response creates cascading problems. This is particularly true in safety applications. Delayed emergency stops or pressure relief can lead to serious issues. Delayed valve responses in critical applications can lead to severe consequences. In fire suppression systems, a slow valve allows fires to spread. This endangers facilities and personnel. Similarly, in aerospace, timely oxygen regulation during emergencies is crucial. Slow valves compromise safety. Fluid control systems are also at risk. Delayed valve responses cause pressure surges. These surges burst pipes or destabilize storage tanks. They also contribute to fluid hammer effects. These effects damage pipelines and equipment. In medical devices like ventilators, any delay in valve activation affects life-sustaining oxygen delivery. This harms patients. Fast-acting valves are therefore essential. They mitigate risks, prevent equipment damage, and ensure the safety of personnel and systems.
Certain industrial processes require exceptionally fast control valve response times. This helps maintain safety. Emergency shutdown systems, for instance, demand response times measured in milliseconds to seconds. Delayed valve closure could result in catastrophic equipment damage or safety hazards. Pressure relief applications also require immediate valve opening. This prevents equipment overpressure conditions. It necessitates specialized actuator designs optimized for rapid response. In chemical reactor temperature control systems, sub-second response times are often required. This prevents thermal runaway reactions. In hydraulic systems, especially those involving accumulators, rapid valve response times are critical for safety. Accumulators store pressurized fluid. A slow valve response could delay the release of this stored energy. This potentially leads to dangerous situations. Additionally, slow valve response times result in pressure spikes or surges in the hydraulic system. This damages components and reduces system efficiency.
For these critical scenarios, direct-acting valves often provide the necessary speed and reliability.
Systems with Contaminated or Viscous Media
Some systems handle media with particles or thick liquids. In these cases, direct-acting valves often perform better. Their simple design makes them less likely to clog. Pilot-operated valves have small internal passages. These passages can easily get blocked by dirt or thick fluids. This blockage causes the valve to stop working correctly. Therefore, systems using pilot-operated valves usually need cleaner media or extra filters.
Direct-acting valves are stable when handling high-temperature and high-viscosity media. They do not have pilot holes. Pilot holes can cause “locking phenomena” in pilot-operated valves. This makes direct-acting valves a reliable choice for challenging fluids.
Consider these types of direct-acting valves for highly viscous, abrasive, or contaminated media:
- Direct-acting coaxial solenoid valves: These valves work well with highly viscous, abrasive, or contaminated media. They operate effectively even with low pressure differences. They also offer faster operation compared to standard solenoid valves.
- Diaphragm valves: These valves are ideal for handling slurries and thick fluids. They are especially useful in applications needing frequent cleaning. They provide excellent sealing and reduce clogging risks. However, they usually work best with pressures below 10 bars (145 psi). They are not suitable for high-pressure uses.
The valve’s materials also matter a lot. The seal material inside the valve must work well with the fluid it controls. Different fluids need different seal materials. This prevents leaks and ensures the valve lasts a long time.
Balancing Budget and Performance Needs
Choosing a valve often involves balancing the initial cost with its long-term performance and expenses. A cheaper valve might seem good at first. However, it can cost more over its lifetime due to higher energy use and more maintenance.
A detailed Total Cost of Ownership (TCO) analysis helps reveal the true value of advanced control valves. This analysis considers energy consumption, maintenance needs, reliability, and operational benefits over the valve’s entire life. These analyses often show that energy-efficient control valves might cost 15-40% more initially. Despite this, the lifetime operational savings usually justify the investment. Payback periods are often less than 24 months in applications that use a lot of energy. This means lower-cost, higher-consumption valves will have a much higher TCO. They cost more due to increased energy use and maintenance.
Here is a comparison of costs over time:
| Category | Low-Quality Valve | High-Performance Valve |
|---|---|---|
| Initial Cost | $50 | $150 |
| Replacements (5 years) | $200 | $0 |
| Maintenance & Downtime | $500 | $100 |
| Total Cost | $750 | $250 |
Switching to high-performance valves saves $500 over five years. It also reduces disruptions in operations. High-performance valves use durable materials. This reduces how often you need to replace parts and perform maintenance. This leads to substantial long-term maintenance savings.
Several factors contribute to lower long-term maintenance requirements for higher-cost valves:
- Proper Sizing and Specification: Optimizing valve sizing reduces wear from flow and friction on sealing parts. This improves reliability and decreases failures, repairs, and part replacements. It lowers maintenance costs.
- Quality of Valve Materials: Choosing high-quality materials makes the valve last longer. It improves safety and ensures predictable performance. This reduces the need for frequent repairs or overhauls.
- Correct Actuation Mechanisms: Using the right actuator size improves valve operations. It minimizes failures and component breakdowns. It also prevents increased process downtimes and repair expenses.
- Predictive Maintenance Programs: Implementing predictive maintenance helps identify and fix valve defects early. This reduces maintenance work and the number of replacement parts. It significantly minimizes overall maintenance costs.
Choosing the right solenoid valve is crucial. You must consider pressure, flow, response time, and media type. Direct-acting valves suit low-pressure, quick-response, or dirty media applications. Pilot-operated valves handle high flow, larger pipes, and offer energy efficiency. Matching the valve type to your specific application ensures optimal system performance. This also guarantees longevity. Always select the valve that best fits your system’s unique demands.
FAQ
What is the main difference between direct-acting and pilot-operated valves? 🤔
Direct-acting valves use a solenoid to directly open or close the valve. Pilot-operated valves use a small pilot valve to control a larger main valve. This difference affects how they handle pressure and flow.
Which valve type works best with low or zero pressure?
Direct-acting valves are ideal for low or zero pressure systems. They do not need a pressure difference to operate. Pilot-operated valves require a minimum pressure differential to function correctly.
Can direct-acting valves handle dirty liquids? 💧
Yes, direct-acting valves are often better for dirty or viscous media. Their simple design makes them less likely to clog. Pilot-operated valves have small internal passages that can easily get blocked.
Which valve uses less power?
Pilot-operated valves consume significantly less power. They are more energy-efficient for applications where the valve stays open for long periods. Direct-acting valves use more power for their direct operation.
Are direct-acting valves always cheaper? 💰
Direct-acting valves usually have a lower initial cost. However, pilot-operated valves can offer lower total costs over time. They save money through less energy use and reduced maintenance.
