Solenoid valve components work together to deliver precise fluid control by converting electrical energy directly into mechanical force. Understanding this synchronized internal mechanism is critical for engineers optimizing automated system efficiency and system reliability. This guide analyzes how each specialized component functions collectively within industrial systems to ensure reliable fluid regulation.
Section 1: The Core Mechanisms of Solenoid Valve Components
Electromechanical automation relies entirely on the precise interactions of individual solenoid valve components work together during dynamic operational cycles. When an electrical current flows through the copper windings, the solenoid coil generates a concentrated electromagnetic field. According to Faraday’s Law of Induction, this magnetic force pulls the ferromagnetic plunger upward against the resistance of the return spring. In a standard direct-acting configuration, this physical movement immediately lifts the seal off the valve orifice to permit fluid flow.
Industrial operators utilize different configurations, such as a 2/2 ways solenoid valve for simple on-off control, to match specific application pressures. In pilot-operated systems, the plunger opens a smaller pilot orifice instead, creating a pressure differential across a flexible diaphragm. This utilized differential pressure leverages the energy of the media itself to lift the main valve seal. Consequently, pilot designs manage substantially higher flow rates and higher pressures while consuming minimal electrical power.
| Component Name | Primary Mechanical Function | System Impact of Component Failure |
|---|---|---|
| 1. Solenoid Coil | Converts electricity to magnetism | Valve fails to actuate or open |
| 2. Armature Core | Moves physically via magnetism | Fluid flow remains restricted |
| 3. Return Spring | Restores original plunger position | Valve leaks or fails to close |
| 4. Valve Body | Contains fluid and houses seats | External leakage or pressure drop |
Section 2: Material Selection and Internal Synergies

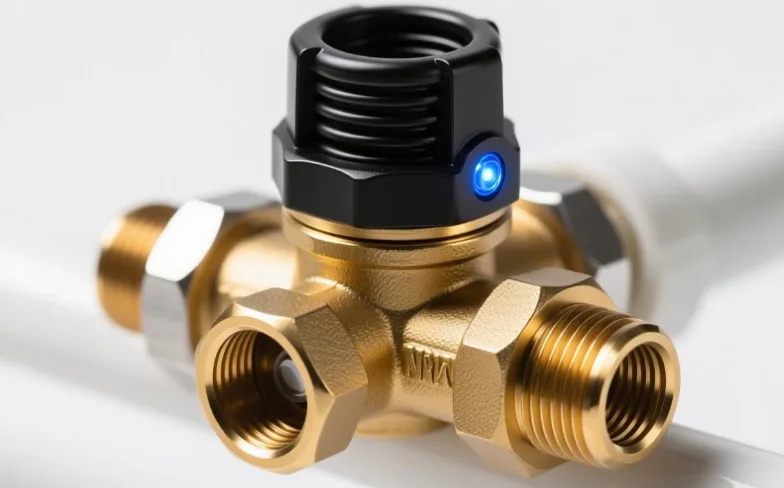

The overall reliability of how solenoid valve components work together depends heavily on selecting compatible engineering materials. The valve body must withstand mechanical stress and chemical erosion, which is why manufacturers utilize stainless steel, brass, or engineered polymers. For instance, a 2/2 ways brass solenoid valve provides excellent thermal conductivity and corrosion resistance for water or oil systems. Conversely, stainless steel variants are mandatory for highly corrosive chemical media or sterile medical environments.
Internal sealing elements dictate the maximum operational temperature limits and chemical compatibility of the entire fluid control loop. Elastomers like Nitrile rubber (NBR) provide excellent resilience for general pneumatic applications under standard conditions. Fluoropolymer seals, including FKM and PTFE, are specified for high-temperature chemical processing plants due to superior molecular stability. The table below outlines how specific material pairings optimize how solenoid valve components work together across distinct environments.
| Material Grouping | Housing Material | Elastomer Seal Type | Optimal Fluid Media |
|---|---|---|---|
| Standard Industrial | Forged Brass | NBR (Nitrile) | Neutral Fluids, Water, Air |
| Chemical Process | 316 Stainless Steel | FKM (Viton) | Mild Acids, Synthetic Oils |
| Extreme Corrosive | CPVC Plastic | PTFE (Teflon) | Aggressive Chemicals, Steam |
Section 3: Integration Within Broader Pneumatic Infrastructure
In complex factory automation, fluid control devices do not operate in isolation from the surrounding system infrastructure. Engineers integrate primary control units with a robust directional valve network to route medium volume flows sequentially. These systems rely on clean, regulated media supplied directly by an upstream air treatment unit to protect internal tolerances. Particulate filtration prevents abrasive dust from entering the valve guide tube, which would otherwise jam the precision plunger.
Downstream actuators require consistent pressure delivery to perform repeatable mechanical operations without sudden component failure. A high-durability pneumatic cylinder executes linear movements based entirely on the rapid exhaust and supply cycles of the control valves. Every connection along these pressure lines must remain completely airtight under variable vibrations. Utilizing a premium pneumatic push-in fitting ensures secure tubing connections, preventing pressure drops that degrade system synchronization.
Section 4: Diagnostics and Troubleshooting Synchronized Assembly Failures
When internal solenoid valve components work together incorrectly, systematic diagnostic testing must be conducted to isolate the mechanical root cause. Electrical failures usually manifest as a burnt-out coil caused by voltage fluctuations or excessive ambient moisture. Technicians can verify coil integrity by measuring electrical resistance with a standard digital multimeter. If the coil shows infinite resistance, the copper windings have broken, necessitating immediate component replacement.
Mechanical failure modes often involve internal contamination or spring fatigue, which prevents the armature from moving smoothly. If a valve fails to close properly, fine particulate matter may be trapped between the seal and the orifice seat. Regular maintenance schedules must include inspecting the internal plunger assembly for scoring or physical deformation. Implementing comprehensive filtration protocols prevents premature wear, ensuring all internal solenoid valve components work together seamlessly over millions of cycles.
Section 5: Engineering Procurement and Selection Checklist
Selecting the ideal equipment requires matching specific fluid parameters with correct mechanical component capabilities. Engineers must calculate the Flow Coefficient (Cv) to ensure the internal orifice meets system volume requirements without creating excessive pressure drops. Additionally, power consumption ratings must align with available electrical control circuits, prioritizing low-wattage models for continuous-duty applications. The structured list below outlines the critical parameters required during the system procurement phase.
Engineering Specification Criteria
- Maximum Operating Pressure Differential (MOPD): Ensure the internal spring rate accommodates the highest system pressure without stalling the armature.
- Media Chemical Compatibility: Cross-reference fluid properties with the valve body and elastomer chemical resistance charts.
- Fluid Temperature Spectrum: Confirm that continuous thermal exposure will not degrade or deform the internal sealing materials.
- Response Time Constraints: Select direct-acting architectures for ultra-fast response times below 10 milliseconds.
- Hazardous Environment Ratings: Specify explosion-proof coil enclosures when operating near volatile gases or combustible dust.
Frequently Asked Questions
1. How do solenoid valve components work together to control fluid flow?
Solenoid valve components work together by converting electrical energy into physical motion via an electromagnetic coil. When energized, the coil creates a magnetic field that pulls an internal plunger upward against a spring. This motion lifts the seal off the valve seat, instantly allowing fluid to pass through the main orifice.
2. What causes a solenoid valve coil to overheat and burn out?
Solenoid valve coils overheat when electrical current flows continuously without sufficient heat dissipation or when the input voltage is incorrect. According to the National Electrical Manufacturers Association (NEMA), voltage fluctuations exceeding 10% can saturate the coil magnetically. Furthermore, a jammed mechanical plunger prevents proper heat dissipation, causing rapid thermal breakdown of the insulation.
3. Can a direct-acting solenoid valve function properly at zero operating pressure?
Yes, direct-acting solenoid valves function perfectly at zero pressure because the magnetic coil lifts the plunger directly without needing fluid assistance. Unlike pilot-operated valves, which require a minimum pressure differential to move an internal diaphragm, direct-acting configurations rely entirely on electrical force to actuate the seal.
4. Why is fluid filtration critical for preventing solenoid valve component failures?
Fluid filtration is critical because microscopic particulate matter can lodge between the moving plunger and the internal guide tube, causing mechanical binding. According to the International Organization for Standardization (ISO 4406), fluid cleanliness directly impacts the longevity of dynamic seals. Contamination prevents complete seal seating, leading to internal leakage and system pressure loss.
5. How do I determine if a valve requires an NBR or FKM seal?
Choose NBR seals for general, low-temperature industrial applications involving water, compressed air, or neutral oils up to 80°C. Select FKM seals when handling aggressive chemical fluids, synthetic lubricants, or high-temperature systems reaching up to 180°C. Choosing the correct elastomer prevents premature swelling, hardening, and subsequent seal failure.
