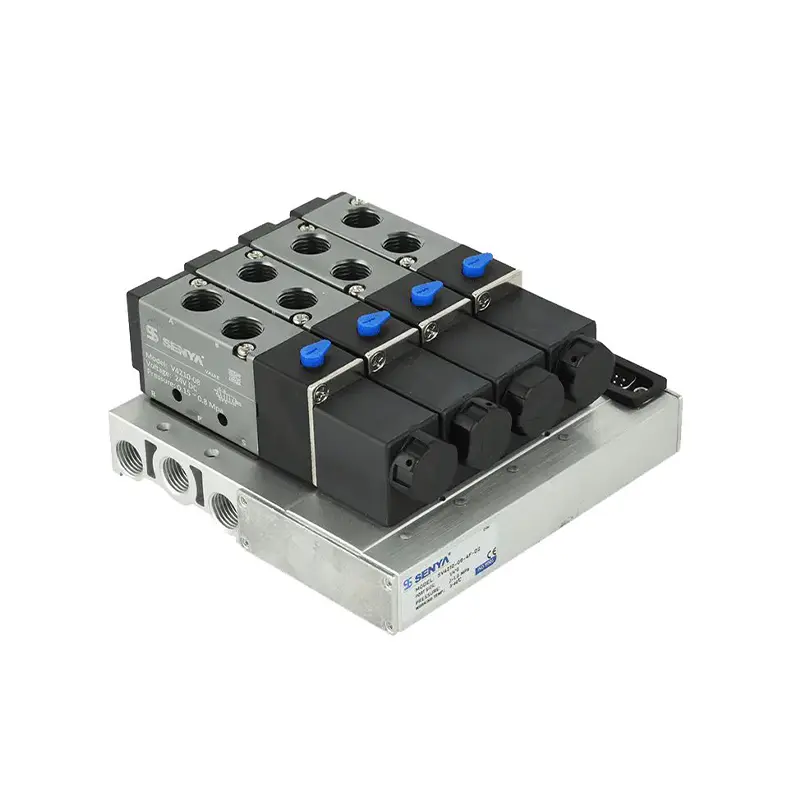

SENYA Pneumatic 5/2 ways SV series plug-in type directional valve manifolds with D-Sub connector

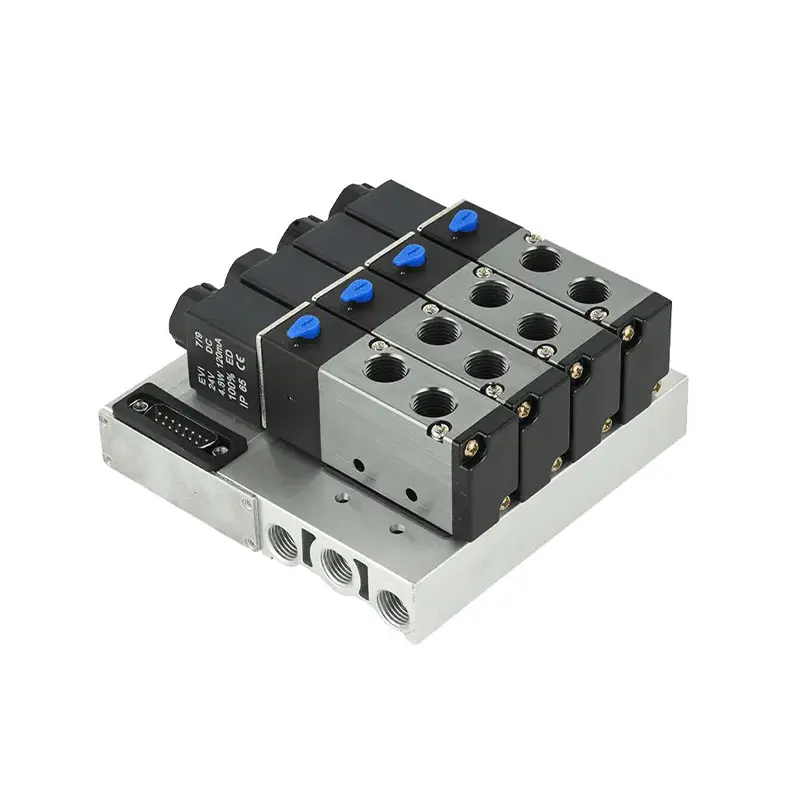

The SV Series Solenoid Valve Manifold revolutionizes pneumatic system design by combining multiple directional control valves into a unified, space-efficient assembly with intelligent connectivity solutions. This innovative valve group utilizes industrial-grade D-SUB connectors (25 or 37-pin variants) to consolidate all electrical wiring into a single, robust interface that withstands 5,000+ mating cycles while preventing incorrect connections through keyed slot design. The integrated air distribution manifold features precision-machined aluminum alloy (ANODIZED 6061-T6) with common supply and exhaust ports (G1/8″ to G1/4″ NPT selectable), eliminating traditional tubing runs between valves and cutting pneumatic component costs by up to 60%.

Engineered for reliability, each 4V210-style cartridge valve in the manifold delivers Cv 0.8-1.2 flow performance with ＜10ms response times, operating across a 0.15-0.8 MPa (22-116 PSI) pressure range. The modular architecture supports 2 to 16 valves in one compact block (50mm per valve station), reducing cabinet space requirements by 40% compared to discrete valve installations. Maintenance is simplified through hot-swappable coils (24VDC/110VAC/220VAC options) that can be replaced in under 15 seconds without disturbing air connections, while transparent polycarbonate status windows provide instant visual confirmation of valve actuation.

The SV Series achieves IP65 environmental protection (including connectors) for reliable performance in dusty or humid conditions, with optional IP67-rated seals for washdown environments. Standard features include laser-etched port markings, and NBR/FKM seal options for compatibility with oils or aggressive media. Applications span automated assembly lines, material handling robots, and packaging machinery where centralized, service-friendly pneumatic control is critical.

Third-party validated testing confirms 10 million+ cycle durability By minimizing tubing, accelerating troubleshooting, and enabling modular expansion, the SV Series reduces total cost of ownership while maximizing uptime in high-cycle automation systems.
