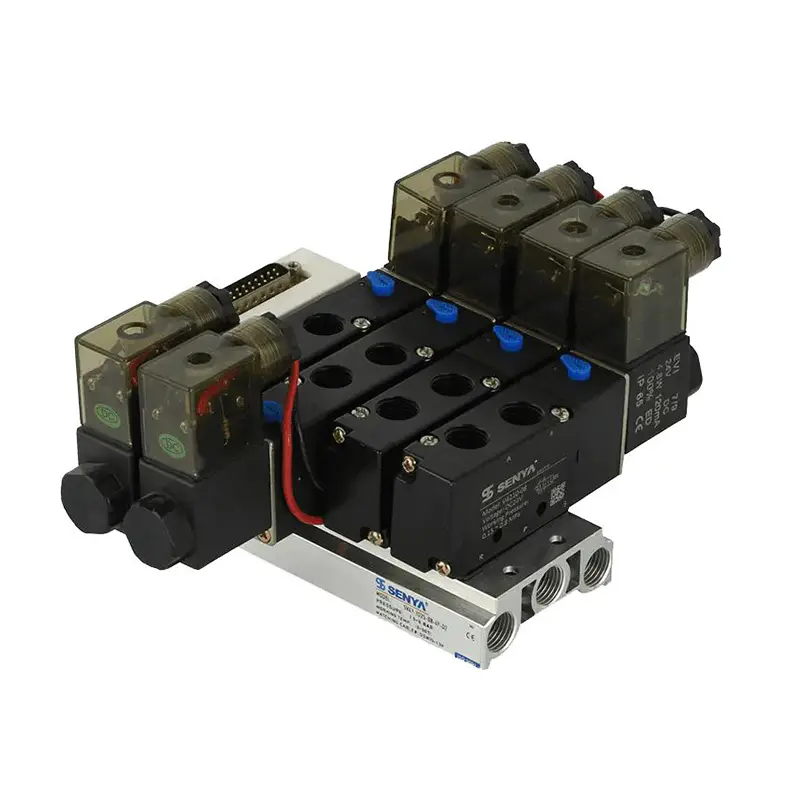

SW series 5/2 ways manifold hybrid combination type directional valve with D-sub connector

The SW Series represents an advanced evolution of D-SUB connector valve manifold technology, combining space efficiency with unprecedented configuration flexibility in pneumatic control systems. This innovative manifold system features a compact, low-profile design with individual valve slots that accommodate mixed installations of both single and double solenoid valves, allowing system designers to create customized control configurations within a single unified platform. The side-mounted electrical connection interface simplifies wiring access while maintaining the manifold’s streamlined dimensions, and the pre-drilled mounting plate ensures secure, vibration-resistant panel installation without requiring additional hardware.

At the core of the SW Series’ design superiority is its integrated D-SUB common connection system that consolidates all electrical interfaces into a single high-density connector, achieving exceptional integration quality that surpasses conventional discrete wiring approaches. This intelligent connectivity solution not only reduces wiring complexity by up to 70% compared to traditional manifolds but also enables rapid system reconfiguration without electrical modification – a decisive advantage in production environments requiring frequent line changeovers. The plug-and-play valve insertion mechanism permits tool-less maintenance and instantaneous component replacement in seconds, while the optimized airflow paths maintain consistent performance whether using single or double solenoid configurations.

Particularly effective in flexible manufacturing systems and multi-process automation equipment, the SW Series delivers reliable performance in high-cycle applications through its combination of robust construction and smart features. The mixed valve compatibility allows precise adaptation to varying pneumatic circuit requirements within the same machine, while the unified D-SUB interface ensures clean, error-resistant electrical integration. With its balanced focus on space optimization, installation efficiency, and operational flexibility, this next-generation valve manifold provides system integrators with a future-proof platform that reduces total cost of ownership through faster commissioning, simplified maintenance, and reduced wiring expenses. The product’s ongoing development incorporates industrial IoT readiness while maintaining backward compatibility, positioning the SW Series as an intelligent foundation for Industry 4.0 pneumatic systems where connectivity, flexibility, and compact design converge.
