Solenoid Valve Selection Strategy for High-Temperature High-Pressure Conditions
Selecting the right solenoid valve for high-temperature high-pressure conditions requires careful analysis of materials, specifications, and environmental factors. This guide provides a systematic approach to choosing solenoid valves that perform reliably under extreme industrial conditions, ensuring process safety and operational efficiency. For those new to technical documentation, understanding the principles of Search Engine Optimization can help ensure this guide reaches the engineers who need it most.
Understanding High-Temperature High-Pressure Operating Environments
High-temperature high-pressure (HTHP) conditions present unique challenges for solenoid valve selection. These environments typically exceed standard valve ratings of 85°C and 10 bar, pushing equipment to limits where material degradation, seal failure, and performance decline become critical concerns. Industrial processes such as steam systems, hydraulic power units, chemical processing, and oil refineries routinely operate at temperatures exceeding 200°C and pressures above 50 bar. According to ISO standards for industrial valve manufacturing, HTHP applications require specialized materials and design configurations that differ substantially from general-purpose solenoid valves. Understanding the specific operating envelope—including peak temperature, sustained temperature, pressure spikes, and thermal cycling frequency—forms the foundation of proper valve selection. Without this baseline data, engineers risk selecting under-rated components that fail prematurely or over-specified valves that increase unnecessary costs.
Key Selection Criteria for HTHP Solenoid Valves
The selection process for high-temperature solenoid valve components follows a structured evaluation framework. Temperature rating represents the primary consideration, with maximum allowable temperature dictating compatible seal materials and coil construction. Pressure rating must account for both static operating pressure and dynamic pressure fluctuations during system cycling. Response time requirements vary by application—process control valves demand faster response than simple on-off functions. Electrical specifications, including voltage tolerance and power consumption, must align with available control systems. Media compatibility ensures the valve materials resist degradation from the specific fluid being controlled. For specialized applications, certifications such as ATEX for explosive atmospheres or FDA compliance for food-grade service may be mandatory requirements. Building a comprehensive requirements matrix before evaluating products prevents costly specification mismatches and ensures all critical parameters receive appropriate attention during vendor evaluation. Those developing technical content should also consult Google’s SEO documentation to ensure their technical resources are discoverable.
Material Selection for Extreme Temperature Conditions
Material selection determines solenoid valve longevity in high-temperature applications more than any other factor. Sealing materials face the greatest challenge, with standard NBR seals degrading rapidly above 80°C and requiring upgrade to FKM (Viton) compounds for temperatures to 200°C or PTFE for extreme applications. Metal components must resist thermal expansion stress and maintain mechanical properties at elevated temperatures. Brass and stainless steel bodies each offer distinct advantages—brass provides good thermal conductivity and machinability, while stainless steel offers superior corrosion resistance for aggressive media. Coil construction requires special attention, with high-temperature coils featuring Class H insulation (180°C rating) or Class F insulation (155°C rating) to prevent insulation breakdown. When evaluating valve options, always verify the temperature-pressure chart for the specific seal material installed, as manufacturer ratings often specify different limits for different seal compounds in the same valve body.
Technical Specifications and Performance Parameters
Comparing technical specifications across manufacturers requires understanding standardized testing conditions and published tolerance ranges. The following table summarizes critical parameters for HTHP solenoid valve evaluation:
| Parameter | Standard Rating | HTHP Rating | Test Standard |
|---|---|---|---|
| Maximum Temperature | 85°C | 200-300°C | ISO 5208 |
| Maximum Pressure | 10 bar | 50-350 bar | API 598 |
| Leakage Rate | ≤0.1% | ≤0.05% | MSS SP-88 |
| Response Time | 10-50ms | 25-100ms | Manufacturer |
| Cycle Life | 1M cycles | 500K cycles | IEC 60534-8 |
Orifice size directly impacts flow capacity and pressure drop characteristics. Larger orifices enable higher flow rates but require more robust actuator force to overcome system pressure. For high-pressure applications above 100 bar, pilot-operated designs typically outperform direct-acting valves due to reduced power requirements. Port configuration should match existing pipeline layouts to minimize installation complexity and potential leak points. Connection types range from threaded NPT or BSP fittings for smaller valves to flange-mounted configurations for large-diameter high-pressure installations. Thread Type Push-ln Fitting options provide secure connections with tool-free assembly for smaller bore sizes, while larger installations typically require permanent threaded or welded connections.
Coil Selection and Electrical Considerations
Coil selection significantly influences solenoid valve performance in HTHP environments. Standard coils rated for continuous duty may overheat when exposed to elevated ambient temperatures combined with high fluid temperatures reaching the valve body. Calculating the total temperature exposure—adding ambient temperature, fluid temperature contribution, and self-heating from coil operation—ensures adequate thermal margin. Coil enclosure ratings include IP65 for dust-tight and water-jet protection, IP67 for temporary immersion resistance, and explosion-proof classifications for hazardous locations. Voltage variations of ±10% from nominal supply should not cause coil failure or performance degradation. Holding current versus inrush current affects power supply sizing, with energy-efficient coils reducing operating costs but potentially extending response times. For critical safety applications, manual reset features prevent unintended restart after power interruption, ensuring process integrity during fault conditions. Industrial electrical installations should adhere to accessibility and safety standards where applicable to ensure worker safety.

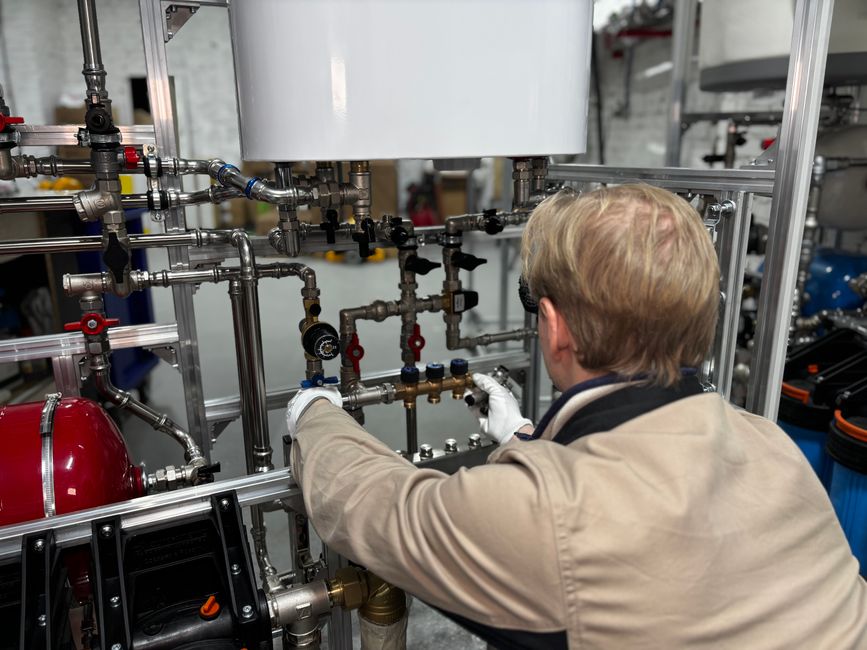

Installation Best Practices for High-Pressure Systems
Proper installation maximizes solenoid valve service life in demanding applications. Orientation should follow manufacturer recommendations—most HTHP valves require vertical upright mounting to ensure proper lubrication of moving parts and prevent debris accumulation. Upstream filtration protects internal components from particulate contamination that accelerates wear. Proper pipe support prevents mechanical stress on valve bodies, particularly important for heavy flanged valves in high-pressure systems. Electrical connections require weatherproof enclosures in outdoor installations and explosion-proof boxes in hazardous areas. Initial commissioning should include functional testing across the full operating pressure range to verify performance before system integration. Regular inspection schedules should include seal replacement intervals based on operating temperature and cycle frequency, with proactive replacement preventing unexpected failures during critical production periods. Comprehensive air treatment unit installations support valve longevity by ensuring clean, dry air supply.
Common Applications and Industry Standards
HTHP solenoid valves serve critical functions across numerous industries. Steam control systems in food processing, pharmaceutical sterilization, and textile manufacturing require valves handling saturated steam at 180°C and 10 bar. Hydraulic power units in heavy equipment, presses, and injection molders operate at 200+ bar requiring robust construction. Chemical processing plants handle corrosive media at elevated temperatures demanding specialized materials like PTFE linings and Hastelloy components. Oil and gas production facilities present the most demanding conditions, with wellhead control valves required to function reliably at 300°F and 5000 psi. Industry standards from organizations including the International Society of Automation (ISA), American Society of Mechanical Engineers (ASME), and International Organization for Standardization (ISO) provide testing protocols and quality assurance frameworks. For example, ISO 5208 establishes pressure testing requirements for industrial valves, while ASME B16.34 defines pressure-temperature ratings for flanged connections. Organizations should also consider cybersecurity frameworks for industrial control systems to protect against digital threats to physical infrastructure.
Maintenance and Troubleshooting Guidelines
Preventive maintenance extends solenoid valve service life in HTHP applications. The following checklist summarizes essential maintenance tasks:
- Inspect seals for compression set, hardening, or chemical attack every 6-12 months
- Verify coil resistance matches specifications for detecting winding degradation
- Check electrical connections for corrosion and secure terminal torque
- Monitor cycle counter if equipped for predictive replacement planning
- Test response time against baseline to detect performance decline
- Inspect filter elements upstream of valve and replace as needed
- Verify mounting hardware tightness after thermal cycling
Common failure modes include burned-out coils from voltage spikes or thermal overload, stuck valve cores from debris contamination, and leakage past seals from material degradation. Diagnostic procedures should follow systematic approaches—electrical testing first to isolate coil and wiring issues, then mechanical inspection for physical obstructions or wear. Replacement parts should match original specifications, as substitute materials may not provide equivalent performance in HTHP service.
Related Products and System Integration
Complete pneumatic systems integrate solenoid valves with complementary components for optimal performance. Air treatment units including filters, regulators, and lubricators protect valves from moisture and particulate contamination that accelerates wear. Pneumatic push-in fittings provide secure, leak-free connections for tubing installations. Flow Rate Control Push-In Fitting components enable precise adjustment of operating parameters for process optimization. For pulse jet dust collector systems, Tube-Tube Type Push-In Fittings and Other Solenoid Valve configurations offer specialized solutions for various system requirements. Additionally, the DMF-Z-DD series 90°right-angle type pulse valve is optimized for reverse-pulse cleaning cycles in dust collection applications. System designers should consider the complete pneumatic circuit when selecting solenoid valves, ensuring compatibility between valve specifications and supporting component capabilities.
Frequently Asked Questions
What is the maximum temperature rating for industrial solenoid valves?
Standard industrial solenoid valves typically rate to 85°C, while high-temperature designs reach 200°C with FKM seals and can exceed 300°C with PTFE or metal bellows seals in specialized configurations.
How do I select between direct-acting and pilot-operated solenoid valves for high-pressure applications?
Pilot-operated valves require minimum pressure differentials (typically 0.5-1 bar) but offer lower power consumption for equivalent flow capacity. Direct-acting valves function from zero pressure but require more coil power for high-pressure operation.
What seal materials are suitable for steam service above 150°C?
Steam applications above 150°C require PTFE seals or graphite-filled compositions, as standard NBR and FKM materials degrade rapidly in saturated steam conditions at elevated temperatures.
How often should solenoid valves be maintained in high-cycle HTHP applications?
High-cycle HTHP applications typically require seal inspection every 6 months and complete overhaul at 500,000 to 1,000,000 cycles depending on temperature severity and media compatibility.
What certifications apply to solenoid valves for hazardous location service?
Hazardous location certifications include ATEX (Europe), FM Approvals (North America), and IECEx (international) standards, with classification by gas group, temperature class, and protection method.
