Pneumatic Cylinder Types
Pneumatic cylinder types are developed to meet a wide range of industrial automation requirements. A pneumatic cylinder is used to convert compressed air into linear motion, but different applications require different designs. From basic air cylinders to advanced motion control systems, selecting the correct type ensures higher efficiency, better performance, and longer service life in industrial environments.
Single Acting and Double Acting Pneumatic Cylinders

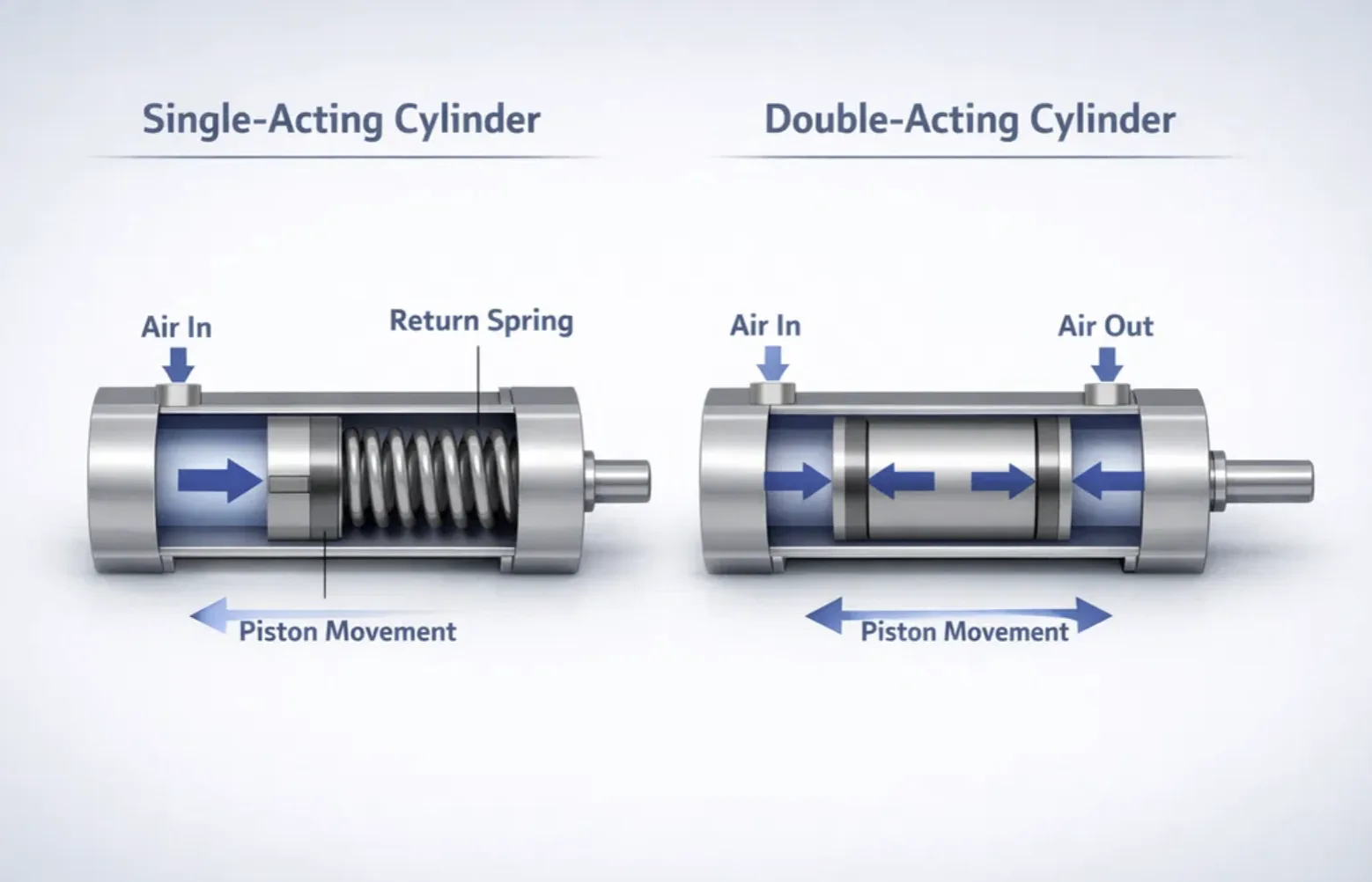

The most common types of pneumatic cylinders are single acting and double acting cylinders. A single acting pneumatic cylinder uses compressed air to move the piston in one direction, while a spring returns it to its original position. In contrast, a double acting pneumatic cylinder uses air pressure for both extension and retraction, offering greater control and force. These industrial pneumatic cylinders are widely used in automation equipment, packaging machinery, and assembly lines.
Specialized Pneumatic Cylinder Types for Space and Efficiency
In addition to standard cylinders, there are specialized designs such as compact cylinders, rodless cylinders, and guided cylinders. Compact pneumatic cylinders are ideal for applications with limited space, while rodless pneumatic cylinders provide long stroke lengths without requiring additional installation space. These advanced pneumatic cylinder solutions improve system efficiency and flexibility in modern automation systems.
Structural Design and Material Impact Performance

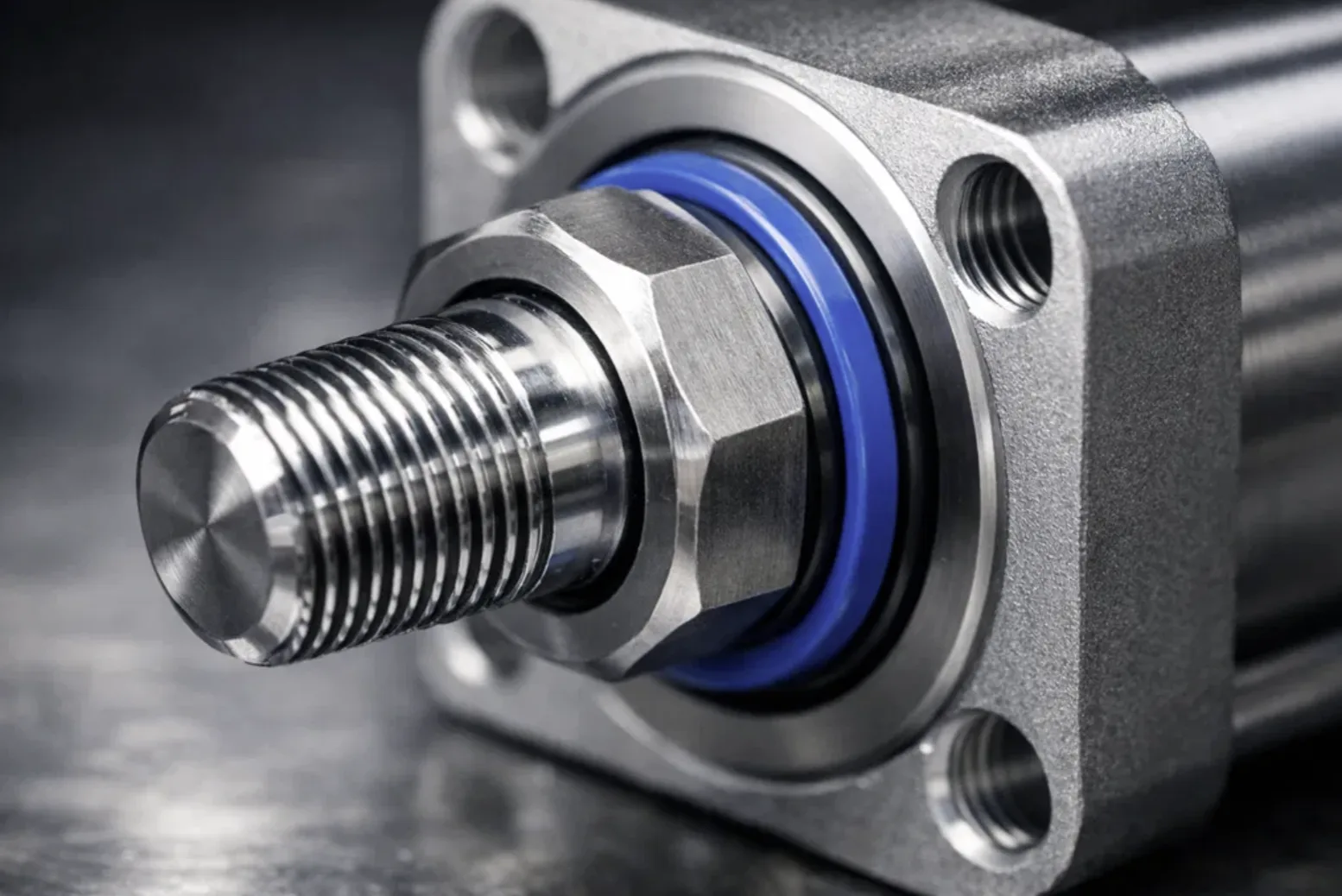

The performance of different pneumatic cylinder types depends on their structural design and materials. High-quality pneumatic cylinder components, including the barrel, piston, rod, and sealing system, ensure durability and smooth operation. Advanced manufacturing technologies improve sealing performance, reduce friction, and extend the lifespan of industrial air cylinders, especially in high-frequency operations.
Choosing the Right Pneumatic Cylinder Improves System Efficiency
Selecting the right pneumatic cylinder type is essential for achieving optimal system performance. Factors such as load requirements, stroke length, operating pressure, and installation environment must be considered. Using high-quality pneumatic cylinders for automation helps reduce maintenance costs and improve productivity. Working with a reliable pneumatic cylinder manufacturer ensures customized solutions and consistent product quality.
FAQ
Q1: What is a pneumatic cylinder and how does it work in industrial systems?
A: A pneumatic cylinder is a device that uses compressed air to generate linear motion and force for automation and mechanical applications.
Q2: How does a pneumatic cylinder operate step by step?
A: Compressed air enters the cylinder chamber, builds pressure, and pushes the piston to create controlled linear movement.
Q3: What is the difference between single acting and double acting pneumatic cylinders?
A: Single acting cylinders use air pressure in one direction with spring return, while double acting cylinders use air pressure for both extension and retraction.
Q4: What is the structure of a pneumatic cylinder and how is it designed?
A: A pneumatic cylinder consists of a barrel, piston, rod, seals, and end caps, designed for durability and airtight performance.
Q5: What are the main components of a pneumatic cylinder system?
A: Key components include the piston assembly, cylinder body, sealing system, air ports, and mounting elements.
Q6: How does air pressure drive motion in a pneumatic cylinder?
A: Compressed air creates pressure inside the chamber, which pushes the piston to generate linear motion and mechanical force.
