Selecting the correct pressure rating for a 2/2 Way Solenoid Valve proves crucial. This choice depends on several vital factors. One must assess the system’s maximum operating pressure. The valve’s pressure differential requirements also significantly impact the decision, especially for a pilot-operated 2/2 way solenoid valve. Additionally, the media’s characteristics, like its viscosity or corrosiveness, influence the ideal brass 2/2 way solenoid valve. Accurate 2/2 way solenoid valve pressure rating selection guarantees safe and efficient operation for any Solenoid Valve.

Key Takeaways

• Always know your system’s highest pressure. Pick a valve that can handle this pressure, plus a safety buffer.
• Check if your valve needs a pressure difference to work. Some valves need a certain pressure gap between their start and end points.
• Think about what flows through the valve. Thick liquids or harsh chemicals need special valves and materials.
• Look at the valve’s instructions from the maker. These papers tell you the valve’s limits and how it works best.
• Choose a valve with a higher pressure rating than you think you need. This protects it from sudden pressure changes.

Understanding Pressure Ratings for 2/2 Way Solenoid Valves

Defining Maximum Operating Pressure (MOPD) for 2/2 Way Solenoid Valves

Maximum Operating Pressure Differential (MOPD) represents the highest pressure a valve can safely handle during its normal operation. Manufacturers clearly specify this limit for each valve. For instance, the CSA C22.2 No. 139-13 standard for electrically operated valves requires permanent marking of a valve’s maximum operating pressure differential or its maximum rated pressure. This ensures users always know the valve’s safe limits. In hydraulic systems, standards often demand rigorous testing. Hydraulic control valves in elevating devices undergo leakage tests at twice their rated pressure. Strength tests can even involve five times the rated pressure for certain components. Specific products, like a 2WH series brass 20 bar high-pressure solenoid valve, demonstrate that manufacturers design valves for a wide range of MOPD levels.

The Importance of Pressure Differential (ΔP) in 2/2 Way Solenoid Valve Operation

Pressure differential, or ΔP, describes the difference in pressure between the inlet and outlet ports of a valve. This factor is very important for how a valve works. For direct-acting valves, ΔP might not be as critical. However, pilot-operated valves depend on a minimum ΔP to open or close correctly. Without enough pressure difference, the valve’s internal mechanism may not shift. This prevents the valve from functioning as intended. Always check the manufacturer’s specifications for the required ΔP.

Differentiating Burst Pressure from Working Pressure in 2/2 Way Solenoid Valves

Working pressure is the maximum pressure a valve can continuously withstand during normal use. This is the pressure you expect in your system. Burst pressure, on the other hand, is the absolute maximum pressure a valve can endure before it physically fails or ruptures. This represents a critical safety limit. Manufacturers design valves with a significant safety margin between their working pressure and burst pressure.

Here is a look at some examples:

Valve Model	Burst Pressure (bar)	Calibration Pressure (bar)	Ratio (Burst/Calibration)
PFV-W24-M050N-1000 2/2 Proportional Solenoid Valve	35	10.0	3.5
PFV-W24E01-M100E-0100 2/2 Proportional Solenoid Valve w/ Onboard Linear Driver	35	1.0	35.0
PFV-W12E01-M012E-0800 2/2 Proportional Solenoid Valve w/ Onboard Linear Driver	35	8.0	4.375

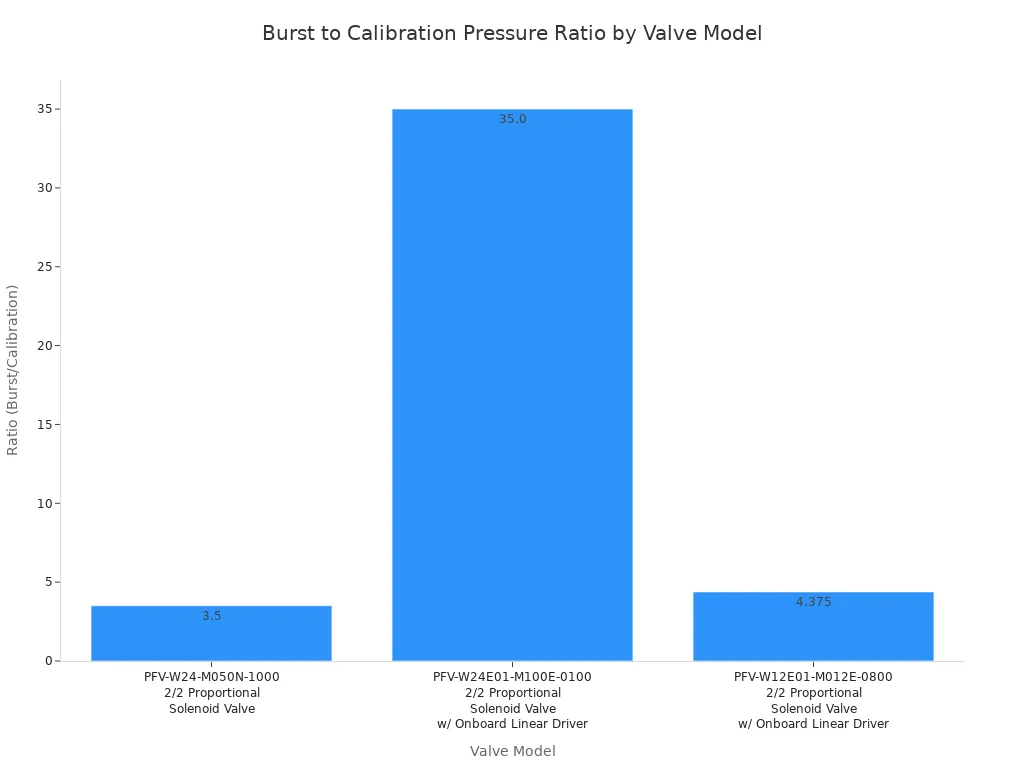

This chart visually represents these ratios:

The ratio between burst pressure and working pressure (or calibration pressure in these examples) shows the valve’s safety factor. A higher ratio means a greater safety margin.

Case Study: Selecting a 2/2 Way Solenoid Valve for a High-Pressure Water System

Imagine a factory needs a new valve for its high-pressure cleaning system. This system uses water at significant pressure to wash equipment. Choosing the right 2/2 Way Solenoid Valve here is very important for safety and efficiency. What factors should they consider?

First, they look at the fluid itself. It is just water. So, valve bodies made from brass or plastic with NBR seals are usually fine. Using the wrong material could cause leaks or early failure.

Next, they think about the pressure and flow. High-pressure water systems often work best with pilot-operated solenoid valves. These valves are strong and use less energy under pressure. The team must make sure the valve’s operating pressure range matches the system’s pressure. They also need to consider the flow rate (Cv or Kv value). This prevents the valve from restricting water flow or giving poor control.

The valve’s job is simple: turn the water on and off. A 2/2-way valve is perfect for this. If the power ever fails, they want the water to stop flowing. So, a Normally Closed (NC) configuration is the best choice. This means the valve closes automatically when it loses power.

Electrical details also matter. The valve’s voltage (AC or DC) must match the control system. They also consider how much power the valve uses. Since it is a wet environment, the valve needs a good Ingress Protection (IP) rating to keep water out of its electrical parts.

Finally, certifications are crucial. The chosen valve must meet all relevant industry and local rules. This includes things like CE marking or ISO 9001. These certifications ensure the valve is compatible and meets project requirements. By carefully checking these points, the factory can select a reliable valve for its high-pressure water system.

Key Factors Influencing 2/2 Way Solenoid Valve Pressure Selection

Analyzing System Operating Pressure Range for 2/2 Way Solenoid Valves

The system’s operating pressure range is a primary consideration when choosing a solenoid valve. You must ensure the valve can handle the lowest and highest pressures it will encounter. Manufacturers design valves for specific pressure limits. For example, when selecting JP Fluid Control 2/2-Way Pneumatic Solenoid Valves, the operating pressure range is a crucial factor. These valves come in configurations to meet various pressure requirements. Some general-purpose solenoid valves, like the ASCO™ Series L182-BIG, have a maximum allowable pressure (PS) of 15 bar. For common water and air applications, a 2-inch brass normally closed solenoid valve often offers a versatile pressure range of up to 145 PSI. Matching the valve’s rated pressure to your system’s actual operating pressure prevents premature failure and ensures reliable operation.

Impact of Media Type and Characteristics on 2/2 Way Solenoid Valve Pressure

The type of fluid or gas flowing through the valve significantly impacts pressure selection. Different media have unique characteristics. These include viscosity, temperature, and corrosiveness. These properties directly affect how the valve performs under pressure. For instance, chemical-handling applications demand solenoid valves constructed from materials resistant to corrosion. Stainless steel or specific types of plastics are often necessary for highly corrosive chemicals. Using an incompatible valve can lead to rapid damage, leaks, and system failures. The compatibility of a 2/2 Way Universal Pilot Diaphragm Valve, for example, depends on its construction materials and the medium’s characteristics.

Consider these material choices for different media:

Component	Material	Working Medium	Scope of Application (Temperature/Concentration)
Seal Material	EPDM, VITON	Anticorrosive fluids (acid, alkali, salt)	–
Body Material	UPVC	Sulfuric acid (<10%), Hydrochloric acid	Fluid temperature <50℃
Body Material	CPVC	Sulfuric acid (<60%), Any Hydrochloric acid	Fluid temperature <90℃
Body Material	PTFE	Anticorrosive fluids (acid, alkali, salt)	–

For corrosive media, you might see:

Media	Body Material	Seat Material
Corrosive Media	CF8, CF3M, CF8M	PTFE, Viton, CFT
Chemicals	CF8, CF8M	NBR

When choosing a valve, always:

• Research valve specifications for designed media handling.
• Contact the valve manufacturer or supplier if you are unsure.
• Consider medium properties: viscosity, corrosiveness, and temperature.
• Consider operating conditions: pressure and flow rate.
• If possible, test the valve with a small amount of the actual medium before full-scale installation.

How Flow Rate Requirements Affect 2/2 Way Solenoid Valve Pressure Drop

Flow rate describes the volume of fluid or gas moving through the valve over a specific time. This requirement directly influences the pressure drop across the valve. Every valve creates some resistance to flow. This resistance causes a pressure drop between the inlet and outlet. If the flow rate is too high for a given valve size, the pressure drop will be significant. This can reduce system efficiency or prevent downstream components from receiving adequate pressure. Manufacturers provide Cv (flow coefficient) or Kv (flow factor) values. These numbers help you determine the valve’s flow capacity and predict pressure drop at different flow rates. Selecting a valve with an appropriate Cv/Kv value ensures your system maintains the necessary pressure and flow for optimal performance.

Direct-Acting vs. Pilot-Operated 2/2 Way Solenoid Valve Pressure Considerations

The internal design of a solenoid valve greatly influences its pressure requirements. Two main types exist: direct-acting and pilot-operated. Each type handles pressure differently.

Direct-acting valves open or close directly by the solenoid coil’s magnetic force. This means they do not need a minimum pressure differential (ΔP) to operate. They work well in systems with low pressure, vacuum, or where the pressure might drop to zero. However, the solenoid coil must be strong enough to overcome the system pressure acting on the valve’s seal. This limits their use in high-pressure, high-flow applications because a very powerful, large coil would be necessary.

Pilot-operated valves, also known as internally piloted valves, use the system’s own pressure to assist in opening or closing. A small pilot orifice allows fluid to act on a larger diaphragm or piston. The solenoid only needs to open or close this small pilot orifice. This design allows them to handle much higher pressures and larger flow rates with a smaller, less powerful solenoid coil. The trade-off is that pilot-operated valves require a minimum pressure differential to function correctly. If the pressure difference between the inlet and outlet is too low, the valve may not fully open or close.

Consider these points when choosing:

• Direct-Acting: Best for low pressure, vacuum, or zero ΔP. Simpler design.
• Pilot-Operated: Ideal for high pressure and high flow. More energy-efficient for larger applications. Requires a minimum ΔP.

Incorporating Safety Margins and Overpressure Protection for 2/2 Way Solenoid Valves

Selecting a valve with the exact pressure rating as your system’s maximum operating pressure can be risky. Systems often experience unexpected pressure spikes or fluctuations. Incorporating safety margins helps prevent valve failure and ensures system integrity.

A good practice involves choosing a valve with a maximum operating pressure rating at least 1.5 to 2 times higher than your system’s normal maximum operating pressure. For example, if your system runs at 100 PSI, select a valve rated for 150-200 PSI. This buffer protects the valve from damage during transient pressure events.

Beyond safety margins, consider overpressure protection devices. These devices prevent system pressure from exceeding safe limits. Common examples include:

• Relief Valves: These valves automatically open when pressure exceeds a set point, releasing excess fluid or gas. They then close when pressure returns to normal.
• Rupture Discs: These are non-reclosing pressure relief devices. They burst open at a predetermined pressure, providing immediate, full-flow relief. You replace them after activation.

Implementing these measures safeguards your equipment and personnel. It also extends the lifespan of your 2/2 Way Solenoid Valve and other system components.

Case Study: Choosing a 2/2 Way Solenoid Valve for a Viscous Fluid Application

A food processing plant needs a valve to control the flow of thick corn syrup. This syrup is very viscous, meaning it flows slowly and resists movement. The system operates at a moderate pressure of 50 PSI.

The plant engineers face a challenge: viscous fluids can cause significant pressure drop across a valve. They can also clog small orifices.

Here is how they approach the selection:

1. Fluid Characteristics: The corn syrup is thick. Its viscosity changes with temperature. They know it is non-corrosive to common valve materials like brass or stainless steel.
2. Pressure and Flow: The system pressure is 50 PSI. The required flow rate is moderate.
3. Valve Type Consideration:
   • A standard pilot-operated valve might struggle. The small pilot passages could clog with the thick syrup. Also, the syrup’s resistance might prevent the necessary pressure differential from forming across the pilot.
   • A direct-acting valve seems more suitable. It does not rely on system pressure for its operation. The solenoid directly moves the seal.
4. Orifice Size: To minimize pressure drop and prevent clogging, they choose a direct-acting valve with a larger-than-usual orifice size for the given flow rate. This allows the thick syrup to pass through more easily.
5. Solenoid Power: They select a valve with a robust solenoid coil. This coil provides enough force to overcome the resistance of the viscous syrup pushing against the valve’s seal.
6. Material Compatibility: They confirm the valve’s internal components, especially the seals, are compatible with corn syrup and the operating temperature. EPDM or Viton seals are often good choices for food-grade applications.

By carefully considering the fluid’s viscosity and its impact on valve operation, the engineers select a direct-acting valve with a large orifice and powerful solenoid. This ensures reliable control of the corn syrup flow.

Practical Steps for Selecting the Right 2/2 Way Solenoid Valve Pressure Rating

Choosing the right pressure rating for your solenoid valve might seem tricky. However, breaking it down into practical steps makes the process much clearer. Following these steps helps you pick a valve that works perfectly and lasts a long time. Let’s walk through them.

Step 1: Determine Your System’s Maximum Operating Pressure for the 2/2 Way Solenoid Valve

First, you need to know the highest pressure your system will ever reach. This is not just the normal working pressure. Think about any pressure spikes or surges that might happen. You can find this information in a few ways:

• System Specifications: Check the design documents for your hydraulic or pneumatic system. They usually list the maximum expected pressure.
• Pressure Gauges: Observe pressure gauges during peak operation or start-up. Note the highest reading.
• Equipment Manuals: Other components in your system might have maximum pressure ratings. Your valve should match or exceed these.

It is always a good idea to add a safety margin. If your system’s maximum pressure is 100 PSI, consider a valve rated for 150 PSI. This extra buffer protects your 2/2 Way Solenoid Valve from unexpected pressure jumps. It helps prevent damage and ensures reliable operation.

Step 2: Calculate Required Pressure Differential for Pilot-Operated 2/2 Way Solenoid Valves

This step is super important if you are using a pilot-operated solenoid valve. These valves need a certain pressure difference between their inlet and outlet to work. This difference is called the pressure differential (ΔP).

• Check Manufacturer Specifications: Every pilot-operated valve has a minimum ΔP requirement. You will find this in the valve’s datasheet or manual. For example, a valve might need at least 0.5 bar (7 PSI) to open fully.
• Understand the Impact: If the actual pressure differential in your system falls below this minimum, the valve might not open or close correctly. It could get stuck or only partially operate. This leads to system malfunctions.
• Direct-Acting Valves: Remember, direct-acting valves do not need a minimum pressure differential. They are a good choice for systems with very low or fluctuating pressures.

So, measure your system’s typical pressure difference. Make sure it always stays above the valve’s minimum requirement.

Step 3: Account for Media and Flow Effects on 2/2 Way Solenoid Valve Performance

The fluid or gas moving through your valve plays a big role in pressure selection. So does how fast it moves.

• Media Characteristics:
  • Viscosity: Thick fluids, like oils or syrups, create more resistance. This means a higher pressure drop across the valve. You might need a larger valve or one designed for viscous media.
  • Temperature: High temperatures can affect the media’s viscosity and the valve’s seal materials. Ensure the valve’s pressure rating is valid at your operating temperature.
  • Corrosiveness: Corrosive chemicals require specific valve materials. These materials must withstand the chemical attack without failing under pressure.
• Flow Rate Requirements:
  • Pressure Drop: Every valve causes some pressure drop. If you need a high flow rate through a small valve, the pressure drop will be significant. This can starve downstream components of pressure.
  • Cv/Kv Values: Manufacturers provide Cv (flow coefficient) or Kv (flow factor) values. These numbers tell you how much fluid can pass through the valve at a given pressure drop. Use these values to select a valve size that allows your required flow rate without excessive pressure loss.

By considering your media’s properties and your system’s flow demands, you can choose a valve that handles the pressure effectively and maintains optimal system performance.

Step 4: Consult Manufacturer Specifications for 2/2 Way Solenoid Valve Pressure Ratings

After you understand your system’s needs, you must always consult the manufacturer’s specifications. These documents are your ultimate guide. They provide all the critical data for a 2/2 Way Solenoid Valve. Manufacturers clearly list the valve’s maximum operating pressure, minimum pressure differential, and compatible media. They also detail temperature ranges and electrical requirements. Ignoring these specifications can lead to system failure, unsafe conditions, or a much shorter valve lifespan.

For example, a manufacturer’s data sheet might show specific pressure ratings like this:

Pressure Rating Type	Value
Maximum Pressure Differential	300 psig (22 watt), 150 psig (10 watt)
Minimum Pressure Differential	5 psi

This table tells you the highest pressure difference the valve can safely handle. It also shows the lowest pressure difference it needs to operate correctly. Always ensure your system’s conditions fall within these specified limits. This guarantees the valve performs as intended and lasts a long time.

Case Study: Step-by-Step Selection of a 2/2 Way Solenoid Valve for a Pneumatic System

Imagine a factory needs a valve for a pneumatic system. This system controls air cylinders on an assembly line. They need to select the right valve for this job. Here is how they approach it, step by step:

1. Determine Operating Pressure and Flow Requirements: First, they check the air pressure in the system. It consistently runs at 80 PSI. They also need to know how much air the cylinders use. This helps them size the valve correctly. They consider the response time too. Fast-acting cylinders need a valve that opens and closes quickly. They also think about the air quality. Is it dry? Does it contain oil? This affects the choice of seal material.
2. Voltage and Electrical Specifications: The factory’s control system uses 24V DC. So, they must pick a valve with a 24V DC coil. This ensures compatibility and safe electrical operation.
3. Consider Environmental Conditions: The assembly line operates indoors. It has a stable temperature and low humidity. There is no significant dust or corrosive gases present. This means they do not need special environmental protection for the valve. If the valve were outdoors or in a harsh chemical area, they would choose a more robust valve with higher IP ratings.
4. Installation Considerations: The existing piping uses NPT threads. So, they select a valve with matching NPT connections. They also think about future maintenance. They choose a valve that is easy to access and replace if needed.
5. Material Compatibility: The system uses clean, dry compressed air. Standard brass or aluminum bodies with NBR (Buna-N) seals work well for this. If they were using a different gas, like oxygen or a corrosive gas, they would need stainless steel bodies and special seals like PTFE or Viton.
6. Difference Between Direct-Acting and Pilot-Operated Valves: For this pneumatic system, they need to decide between direct-acting and pilot-operated. Since the system has a consistent 80 PSI, a pilot-operated valve is a good choice. It handles the pressure efficiently. It also uses a smaller coil than a direct-acting valve for the same flow. If the pressure often dropped very low, a direct-acting valve would be better because it does not need a minimum pressure differential.

By following these steps, the factory selects a reliable valve. It meets all their pneumatic system’s needs.

Common Pitfalls in 2/2 Way Solenoid Valve Pressure Selection

Choosing the right pressure rating for your valve is very important. People often make mistakes here. These errors can lead to big problems. Let’s look at some common pitfalls.

Consequences of Under-Specifying 2/2 Way Solenoid Valve Pressure Ratings

Selecting a valve with a pressure rating too low for your system causes many issues. The valve cannot handle the system’s force. This leads to premature wear and tear. Seals might fail. The valve body could even rupture. Imagine a balloon filled with too much air; it bursts. The same can happen with an under-specified valve. This creates leaks. It also causes system downtime. Most importantly, it poses serious safety risks to people nearby. Always ensure the valve’s rating exceeds your system’s maximum pressure.

The Drawbacks of Over-Specifying 2/2 Way Solenoid Valve Pressure Ratings

Some people think choosing a much higher pressure rating is always safer. This is not always true. Over-specifying also has its downsides. Valves designed for very high pressures often cost more money. They can also be larger and heavier. This takes up more space. For pilot-operated valves, a higher pressure rating might mean it needs a larger minimum pressure differential to work. Your system might not provide this. This leads to the valve not opening or closing correctly. You end up paying more for features you do not need. You might even get worse performance.

Overlooking Environmental Factors for 2/2 Way Solenoid Valve Pressure

The environment around the valve also affects its pressure performance. People often forget this. Extreme temperatures, both hot and cold, can impact the valve’s materials. High heat can degrade seals. Cold can make materials brittle. Humidity or corrosive atmospheres can cause external corrosion. This weakens the valve body over time. It can lead to leaks or failure under pressure. Always consider the ambient temperature and any chemicals in the air. Choose a valve built to withstand these conditions. This ensures it maintains its pressure integrity.

Case Study: Troubleshooting a Malfunctioning 2/2 Way Solenoid Valve Due to Incorrect Pressure Rating

A large beverage bottling plant faced a puzzling problem. They installed a new 2/2 way solenoid valve on a critical water supply line. The valve worked perfectly most of the time. However, it occasionally failed to close completely. This caused small leaks and wasted water. Production sometimes slowed down because of these issues.

Plant technicians began troubleshooting. They checked the electrical connections and the solenoid coil. Everything appeared normal. They even replaced the valve with an identical model, but the problem continued. The mystery deepened.

A senior engineer suggested a closer look at the system’s pressure. The water line typically operated at 60 PSI. The valve’s specification sheet showed a maximum operating pressure of 75 PSI. This seemed adequate. However, the engineer suspected transient pressure events. They installed a pressure logger to monitor the line continuously.

The data revealed the truth. During system startups and shutdowns, pressure spikes occasionally reached 85-90 PSI. The installed valve’s 75 PSI maximum rating was simply too low for these brief, but powerful, pressure surges. The high pressure forced the valve slightly open or prevented it from fully seating. This caused the annoying leaks.

The solution was clear. They replaced the valve with a model rated for 120 PSI. This provided a comfortable safety margin above the system’s highest pressure spikes. The leaks immediately stopped. Production returned to normal, and the plant avoided further costly downtime. This experience taught them a crucial lesson: always consider all pressure conditions, including temporary spikes, when selecting a 2/2 way solenoid valve.

Maintenance and Longevity of 2/2 Way Solenoid Valves Based on Pressure

Routine Checks for 2/2 Way Solenoid Valve Pressure Integrity

Regular maintenance helps your 2/2 way solenoid valve last longer. It also ensures safe operation. You should perform routine checks to maintain pressure integrity. Visually inspect the valve for any signs of external damage or leaks. Look for corrosion, cracks, or loose connections. Listen for unusual noises during operation. These sounds can indicate internal issues. Regularly check pressure gauges upstream and downstream of the valve. This helps you spot any unexpected pressure drops or spikes. A consistent maintenance schedule prevents small problems from becoming big failures.

Impact of Pressure Fluctuations on 2/2 Way Solenoid Valve Lifespan

Pressure fluctuations significantly affect a valve’s lifespan. Rapid pressure cycles cause stress on internal components. This leads to material fatigue over time. For example, the solenoid tube assembly often has a fatigue rating for 5000 psi (350 bar) service. Manual control assemblies, like D, L, and T types, typically have a mechanical life expectancy of about 7,000 cycles. Frequent and extreme pressure changes accelerate this wear. They can degrade seals and weaken the valve body. This reduces the valve’s overall reliability and shortens its operational life.

Best Practices for Extending 2/2 Way Solenoid Valve Life in High-Pressure Applications

Extending valve life in high-pressure systems requires careful attention. Choose valves built with durable construction. Manufacturers use high-quality, robust materials for long-lasting performance. These materials resist corrosion and wear. Common body materials include Brass, Stainless Steel, Aluminum, CF8, and CF8M. Seat materials like NBR and Viton also offer good performance. For corrosive media, CF8, CF3M, or CF8M bodies with PTFE or Viton seats are excellent choices. Robust flanged fittings provide secure installation. This is especially beneficial for high-pressure applications. Always ensure proper filtration of the media. This prevents particles from damaging internal components. Also, operate the valve within its specified pressure and temperature limits.

Case Study: Preventive Maintenance for a 2/2 Way Solenoid Valve in a Chemical Processing Plant

A large chemical processing plant relies heavily on 2/2 way solenoid valves. These valves control the flow of various chemicals, some of them corrosive. Ensuring their reliable operation is critical for safety and production. The plant implemented a robust preventive maintenance program for these valves. This program helps extend their lifespan and prevents unexpected failures.

Their maintenance team performs routine checks on all 2/2 way solenoid valves. They conduct visual inspections regularly. They look for any cracks, rust, or discoloration on the coil. These signs can indicate potential problems. The team also makes sure upstream air filters are clean. This prevents debris from building up inside the valve body. They carefully inspect O-rings and diaphragms for wear and elasticity. Worn seals can lead to leaks or improper valve function. They also perform cycle testing. This involves monitoring the actuation response time. They confirm the valve switches correctly using sensors or indicators.

For valves operating in 24/7 automation, especially those with high-frequency cycles, the plant inspects them every three to six months. They adjust this schedule based on the air cleanliness and the valve’s cycle load. This proactive approach catches issues before they become critical.

The plant also takes steps to protect its valves in the harsh chemical environment. They use surge protection to prevent coil burnout. This safeguards the electrical components. They also opt for IP-rated or encapsulated coils. These coils offer better protection against moisture and corrosive fumes. Furthermore, they installed a drying unit and an air treatment system upstream. This reduces moisture-related corrosion and prevents sticky operation. These practices significantly improve the longevity and reliability of their 2/2 way solenoid valves.

---

Selecting the correct pressure rating for a 2/2 way solenoid valve is crucial for system reliability and safety. Engineers must accurately assess the maximum operating pressure. Understanding pressure differential is also vital. They should always consider the media’s unique characteristics.

• Accurate pressure assessment is key.
• Understanding pressure differential matters.
• Media characteristics are important.

Adhering to manufacturer specifications is essential. Incorporating safety margins further guarantees optimal performance and longevity.

FAQ

What happens if a solenoid valve’s pressure rating is too low?

If a valve’s pressure rating is too low, it cannot handle the system’s force. This causes premature wear, seal failure, or even rupture. It leads to leaks, downtime, and safety risks. Always choose a valve rated higher than your system’s maximum pressure.

Do all 2/2 way solenoid valves need a minimum pressure differential?

No, not all of them. Direct-acting valves do not need a minimum pressure differential to operate. Pilot-operated valves, however, require a specific pressure difference between the inlet and outlet. This helps them open or close correctly.

How does fluid viscosity affect valve pressure selection?

Viscous fluids, like thick oils, create more resistance. This causes a higher pressure drop across the valve. You might need a larger valve or one specifically designed for thick media. This prevents clogging and ensures proper flow.

Why is a safety margin important for valve pressure ratings?

A safety margin protects the valve from unexpected pressure spikes. It means choosing a valve rated higher than your system’s normal maximum pressure. This buffer prevents damage during sudden pressure changes. It ensures reliable operation and extends the valve’s life.
