In the world of industrial automation, compressed air is often referred to as the “fourth utility.” However, air discharged directly from a compressor is often contaminated. To protect expensive downstream equipment, the FRL Unit serves as the critical first line of defense for any pneumatic system.
The “Guardian” of Pneumatic Circuits

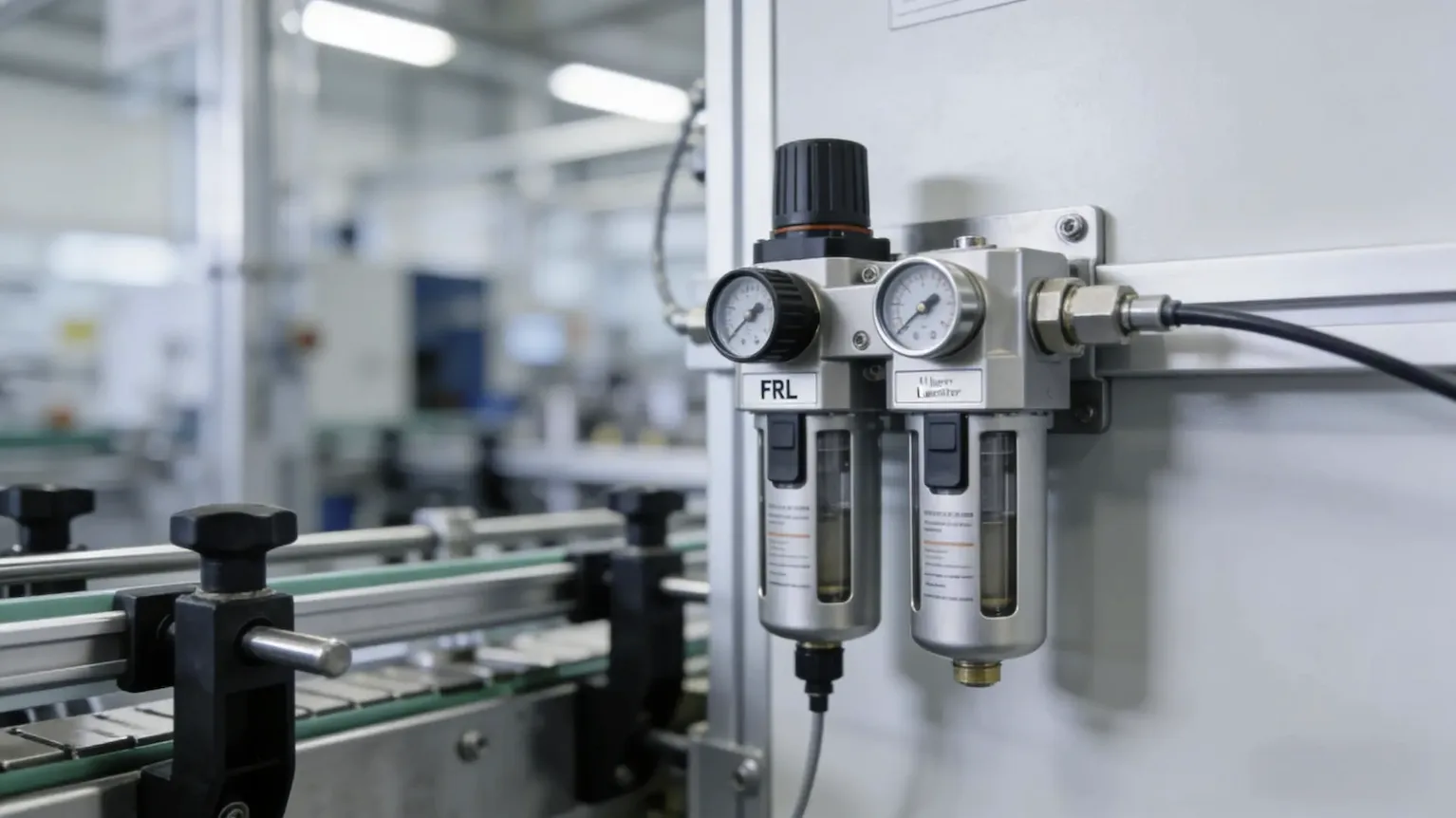

FRL stands for Filter, Regulator, and Lubricator. These three components are typically integrated and installed after the air compressor and before pneumatic devices such as cylinders and solenoid valves.
The core mission of an FRL unit is to transform raw compressed air into a “pure, constant-pressure, and lubricated” power source. Without an FRL unit, moisture can corrode parts, and dust can clog valves, eventually leading to costly production downtime.
Component Structure: A Triple-Action Precision Collaboration
A standard FRL system consists of three precision parts working in harmony:
Filter: This is the first stage. It uses internal cyclone vanes to create centrifugal force, flinging water and oil droplets against the bowl wall,
Regulator: Acting as the “controller,” it uses an adjustable spring and diaphragm to lock the output pressure at a set value, regardless of upstream fluctuations, ensuring stable operation for all tools.
Lubricator: The “lubricant injector” uses the Venturi principle to atomize oil into the airstream. This mist travels to the cylinders to provide continuous lubrication for high-speed moving pistons and seals.
Core Functions and Advantages
Installing an FRL unit is not just a technical requirement; it is a financial necessity. Key benefits include:
Pressure Stability: Ensures consistent thrust for Pneumatic Cylinders, which improves processing accuracy.
Corrosion Protection: Filters out condensate to prevent internal rust in pneumatic piping and delicate valve bodies.
Reduced Downtime: Effective lubrication minimizes wear on Solenoid Valves, extending the maintenance cycle of equipment by 2 to 3 times.
Industrial Applications and Use Cases
From food packaging and pharmaceutical machinery to heavy-duty automotive assembly lines, FRL units are everywhere.
Light Applications: In precision electronics assembly, “FR” duos (without a lubricator) are often used to keep the environment oil-free and clean.
Heavy-Duty Applications: In tasks requiring high force, such as pneumatic gripping or machining, FRL units with High Flow capacity and automatic drainage are essential.
Choosing the right Port Size and Flow Rate is the key to ensuring the energy efficiency of the entire pneumatic circuit.
