Solenoid valves are essential components in fluid control systems. Their market value was approximately USD 4.9 billion in 2024, with projections reaching USD 7 billion by 2032. This growth highlights their crucial role in various industries. Engineers categorize solenoid valves by their operational mechanism, default state, and port configuration. Understanding these distinctions is crucial for effective fluid control in automation. For instance, direct-acting solenoid valves offer quick response. Normally closed solenoid valves provide fail-safe operation; knowing the advantages of normally closed solenoid valves helps in system design. This guide will help readers understand the working principle of direct-acting solenoid valves and how to choose the right solenoid valve type.
Key Takeaways
- Solenoid valves control fluid flow using an electric coil and a moving part. They are important in many automated systems.
- There are three main types of solenoid valves: direct-acting, pilot-operated, and semi-direct. Each type works best for different pressure and flow needs.
- Solenoid valves can be normally open (flow without power) or normally closed (no flow without power). Latching valves save energy by holding their position without constant power.
- Choosing the right solenoid valve means looking at the fluid it handles, its operating temperature, pressure, and the environment it will be in.
- Proper material choice and certifications are important. They ensure the valve works safely and lasts a long time in its specific job.

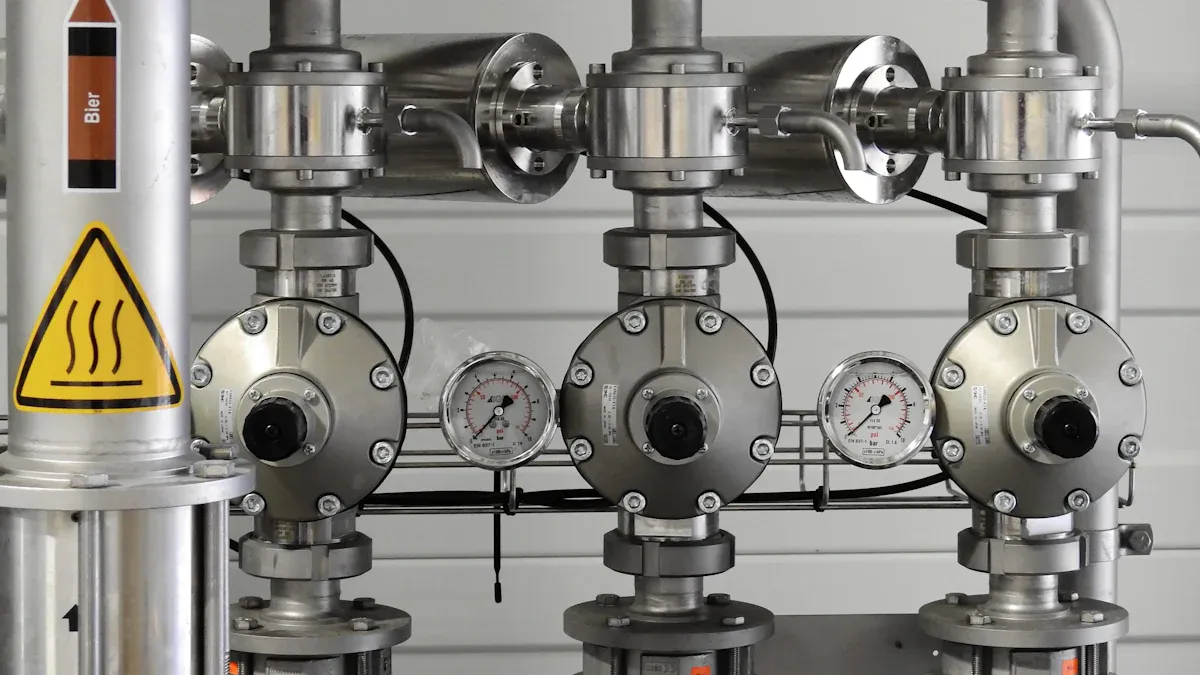

How Solenoid Valves Work
The Basic Principle of Solenoid Valve Operation
Solenoid valves operate on a simple electromagnetic principle. An electrical current passes through a coil, creating a magnetic field. This magnetic field then attracts a ferromagnetic plunger or armature. The plunger’s movement directly opens or closes an orifice within the valve body. This action controls the flow of fluid through the valve. When the electrical current stops, a spring typically returns the plunger to its original position, changing the valve’s state. This rapid and precise control makes them vital in many automated systems.
Key Components of Solenoid Valves
Solenoid valves consist of several key components working in unison. The solenoid coil is the electrical heart; it generates the magnetic force. The plunger or armature is a movable metal rod, pulled by the magnetic field. The valve body forms the main structure, housing the fluid pathways and connections. An orifice is the opening inside the valve that the plunger controls. A seal or disc attaches to the plunger, ensuring a tight closure when the valve is shut. A spring provides the opposing force, returning the plunger to its default position when the coil de-energizes.
Understanding these components also helps in recognizing potential issues. Common failure modes include:
- Not opening/closing properly: Debris, damaged internal components, or electrical issues can cause this.
- Leaking: Often results from damaged parts.
- Overheating: Electrical problems or issues with cooling systems can cause this.
- Too-low differential pressure: This specifically affects indirect operated solenoid valves.
- Solenoid valve does not open: A specific failure mode.
- Solenoid valve opens partially: Another specific failure mode.
- Solenoid valve makes a humming noise: This indicates a potential issue.
- Solenoid coil is burnt: A clear failure mode related to electrical components.
Regarding energy, the solenoid coil requires power. Typical energy consumption varies. For example:
| Valve Type | Energy to Open (Wh) | Energy to Close (Wh) | Energy in Open Position (Wh) | Energy in Closed Position (Wh) |
|---|---|---|---|---|
| Valve A | 0.05 | 0.05 | 0.1 | 0 |
| Valve B | 0.03 | 0.03 | 0.06 | 0 |
These values represent typical usage, including initial power for opening and holding power. They reflect overall daily energy consumption in specific scenarios.
Understanding Operational Mechanisms of Solenoid Valves

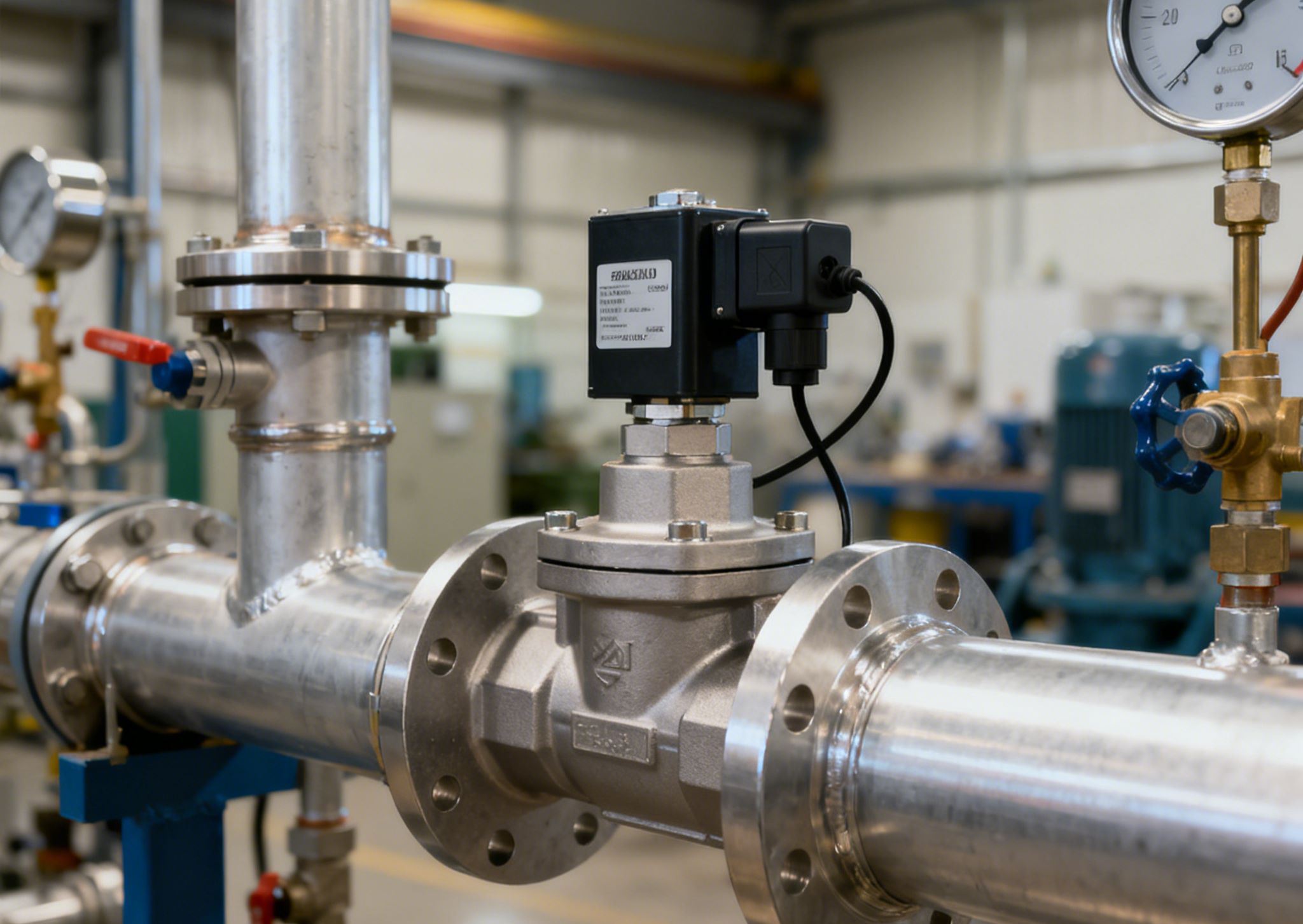

Direct-Acting Solenoid Valves
Direct-acting solenoid valves represent the simplest design. The solenoid coil directly acts on the plunger. This plunger directly opens or closes the main orifice. This mechanism allows these valves to operate from zero pressure. They do not require a minimum pressure differential. This makes them suitable for vacuum applications or closed systems. Direct-acting valves offer very fast response times.
| Valve Type | Response Time |
|---|---|
| Direct-acting | Around 30 ms |
| Indirect-acting | Up to 1000 ms or higher |
| General (all types) | Tens of milliseconds to several seconds |
These valves are known for their high speed, lightweight design, and high flow performance. A Dema 401P.6 Brass Direct Acting 120VAC Solenoid Valve, for example, has a maximum pressure rating of 150 PSI. This particular valve is a direct-acting, normally closed valve designed for low-pressure commercial applications. It features 1/4″ NPT pipe threads and a 7/64″ orifice. Direct-acting solenoid valves operate at pressures ranging from 0 psi up to their rated maximum pressure.
Pilot-Operated Solenoid Valves
Pilot-operated valves, also known as indirect-acting valves, use the system’s fluid pressure to assist in their operation. The solenoid coil does not directly open the main orifice. Instead, it controls a small pilot orifice. When the pilot orifice opens, it creates a pressure imbalance across a diaphragm or piston. This pressure difference then lifts the main diaphragm or piston, opening the larger main orifice. These valves require a minimum pressure differential to function correctly. They are ideal for applications needing larger flow rates.
| Valve Type | Flow Rate Capability |
|---|---|
| Direct-acting | Lower flow rates |
| Pilot-operated | Larger flow rates |
Pilot-operated valves provide high flow rates. They are excellent for very large flow applications. They also prove more economical for higher flow values.
Semi-Direct Solenoid Valves
Semi-direct solenoid valves combine features of both direct-acting and pilot-operated designs. They feature a direct connection between the solenoid and the main diaphragm or piston. This allows them to open from zero pressure, similar to direct-acting valves. Once open, they utilize the system’s pressure to fully lift the diaphragm or piston, like pilot-operated valves. This hybrid design offers versatility.
These valves operate across a wide range of pressure conditions. This includes zero pressure (vacuum) up to high pressures exceeding 100 psi. Their hybrid design allows them to function effectively even without a pressure differential.
Semi-direct acting solenoid valves are particularly well-suited for:
- Applications with varying pressures, including those starting from zero bar.
- Situations demanding moderate to high flow rates.
- Versatile applications capable of handling diverse media.
- Systems requiring a balance between quick response and high flow.
| Feature | Semi-Direct-Acting |
|---|---|
| Works at Zero Pressure | Yes |
| Size / Pressure | Medium to Large size, Medium-High pressure |
| Response Speed | Medium |
| Structure | More complex |
| Energy Use | Medium |
| Application Scenario | Medium-Large flow, Medium-High pressure, Zero pressure start needed, Wide range of general uses |
This type of valve offers a good compromise between the fast response of direct-acting valves and the high flow capacity of pilot-operated valves.
Normally Open vs. Normally Closed Solenoid Valves
Solenoid valves classify by their default state when de-energized. This distinction determines their behavior during power outages or when the system is idle. Understanding this characteristic is crucial for system safety and energy efficiency.
Normally Open (NO) Solenoid Valves
Normally Open (NO) solenoid valves remain open when de-energized. They allow fluid flow without electrical power. The valve closes only when an electrical current energizes the coil. This design provides a fail-safe mechanism in critical applications. For example, fire suppression systems often use NO solenoid valves. These valves ensure water or other extinguishing agents remain available even if power fails. Similarly, cooling systems in industrial settings use NO valves. They maintain coolant flow to prevent machinery overheating during power interruptions. Ventilation systems also employ NO valves. They guarantee continuous airflow in critical areas like fume hoods or air supply lines during electrical outages.
NO valves consume energy when they need to remain closed. Their natural state is open. They are energy-efficient when continuous flow is required. However, they consume more energy if the system needs to stop fluid flow for long periods.
Normally Closed (NC) Solenoid Valves
Normally Closed (NC) solenoid valves remain closed when de-energized. They block fluid flow without electrical power. The valve opens only when an electrical current energizes the coil. This design is common for applications requiring fluid containment during power loss. NC valves consume energy when they need to remain open. Their natural state is closed. They are energy-efficient when the system needs to stop fluid flow most of the time. They consume more energy if continuous airflow is needed.
| Valve Type | Energy Consumption Advantage When… | Energy Consumption Disadvantage When… |
|---|---|---|
| Normally Open | Continuous flow is required | Constant stoppage of fluid is required |
| Normally Closed | Constant stoppage is required | Continuous flow is required |
Bi-Stable (Latching) Solenoid Valves
Bi-stable, or latching, solenoid valves offer a unique operational advantage. They require only a brief pulse of current to switch positions. Once they switch, they hold their position without consuming additional power. This characteristic makes them highly energy-efficient. They consume virtually no power and generate almost no heat or electrical noise when held in either the open or closed position. This allows for higher current pulses during the ‘on’ cycle. This leads to faster operation and greater pulling force without excessive heat. Latching solenoids are beneficial for systems with limited power. They enable faster operating speeds or the use of smaller devices.
2-Way and 3-Way Solenoid Valves: Controlling Flow Paths
2-Way Solenoid Valves
Two-way solenoid valves are the simplest type. They have two ports: one inlet and one outlet. These valves act like an on/off switch for fluid flow. They either allow fluid to pass or stop it completely. Two-way valves are common in many industrial processes.
- Manufacturing and Automation: They control pneumatic actuators and cylinders in assembly lines, conveyor belts, and robotics.
- Chemical Processing: These valves enhance media regulation and operational safety.
- Water Treatment: They manage compressed air and control oxygen levels.
- HVAC Systems: Two-way valves regulate airflow through ducts and dampeners. They integrate into building management systems for energy efficiency.
- Process Control: They function as start and stop points for dispensing, isolation, sequencing, and pressure regulation. They also find use in sealing and labeling equipment in packaging, and automated bottling in food and beverage.
- Oil and Gas: These valves control gas flow and pressure.
They also control coolant flow in air conditioners and refrigerators. In the medical field, they regulate oxygen and air flow in ventilators and dialysis machines. Water treatment plants use them to regulate water or chemicals for disinfection and filtration.
3-Way Solenoid Valves
Three-way solenoid valves have three ports and two positions. They can either divert fluid from one path to another or mix fluids from two different sources. These valves are versatile for controlling flow paths.
Three-way solenoid valves come in various configurations:
- Normally Closed (NC) 3-way valves: These valves block the path between the intake and outlet ports until an electrical signal energizes them.
- Normally Open (NO) 3-way valves: These valves allow fluid flow from the intake to the outlet. They obstruct the exhaust port when de-energized.
- Multi-purpose 3-way valves: These configurations allow flow to be directed to one port or another. They also permit flow to travel in either direction.
- Universal 3-way valves: These adapt to either normally-closed or normally-open setups. They offer versatility for flow diversion or selection.
These valves control the movement of actuators or motors in pneumatic and hydraulic systems. They regulate water in irrigation, plumbing, and water treatment systems. They also manage airflow in HVAC systems and air compressors. In chemical processing, they control chemical flows for precise handling.
Beyond the Basics: Solenoid Valve Materials and Features
Body and Seal Materials for Solenoid Valves
Choosing the correct body and seal materials is critical for solenoid valve performance and longevity. Different applications demand specific material properties. For instance, 316 Stainless Steel offers excellent chemical compatibility with various media. It is a premium material, more expensive due to machining difficulty. Other materials also handle corrosive fluids effectively. PTFE (Polytetrafluoroethylene) resists acids, alkalis, and solvents, making it suitable for aggressive applications. Stainless steel provides durability and corrosion resistance for many chemicals. Polyetherimide (PEI) and Polyphenylene Sulphide (PPS) are used in specific valve series for corrosive fluids, especially in biotechnology and chemical manufacturing. PVC (PolyVinylChloride) works well for seawater, most acids, bases, and salt solutions, but it has temperature and pressure limitations. Nickel-plated brass resists saltwater and weak acids, but scratches can lead to rust.
Seal materials also vary based on application needs. For high-temperature environments, materials like Fluoroelastomers and PTFE (Teflon) offer excellent resistance. FKM/FFKM (Fluorinated Elastomer/Perfluoro Elastomer) provides more temperature resistance than NBR and neoprene. Some FFKM grades perform continuously above 200°C.
Voltage and Power Requirements for Solenoid Valves
Solenoid valves operate on various voltages, depending on the region and application. Industrial settings often use 24V solenoid valves. They balance power and safety, integrating easily with many industrial control systems. These valves handle a wider range of fluid pressures and flow rates than 12V options. In North America, 110V solenoid valves are standard for household voltage and some industrial equipment. Many parts of the world, including Europe and Asia, use 220V solenoid valves for larger industrial applications. These handle high-pressure and high-flow rate situations.
Power consumption also differs between AC and DC solenoids. AC solenoids typically have high initial power for quick activation. They then use low sustained power to keep the valve open, leading to energy savings. DC solenoids show a slower rise in initial power, resulting in slower valve opening. They often consume constant power, which can be more than needed, leading to wasted energy. Overall, AC solenoids are generally more energy-efficient due to reduced power after activation.
Pressure and Temperature Ratings for Solenoid Valves
Solenoid valves have specific pressure and temperature ratings. These ratings define the operational limits for safe and effective use. Manufacturers design valves to withstand certain maximum pressures. Exceeding these limits can cause valve failure or system damage. Temperature ratings are equally important. For cryogenic applications, low-temperature solenoid valves operate in environments as cold as -50°C (-58°F). This specialized design ensures reliable performance in extreme cold. Always match the valve’s ratings to the system’s operating conditions.
Certifications and Approvals for Solenoid Valves
Solenoid valves often require specific certifications and approvals. These ensure safety, performance, and compliance with industry standards. Manufacturers obtain these certifications for different markets and applications.
Several key certifications demonstrate a valve’s adherence to safety and quality.
- UL Certification indicates compliance with safety and testing standards. Underwriters Laboratories sets these for North American markets, including the USA and Canada.
- CE Marking/ATEX Certification is necessary for the European Union market. ATEX specifically confirms safety for use in potentially explosive atmospheres. This includes flammable gases and vapors.
- CSA Certification signifies that solenoid valves meet Canadian Standards Association specifications. It also finds acceptance in certain hazardous applications in the US.
- IECEx Certification is an international certification. The International Electrotechnical Commission issues it. This makes valves acceptable for various hazardous applications globally.
For explosion-proof environments, specific standards classify equipment. These include NEMA (National Electrical Equipment Manufacturers Association) for the USA, IEC Ex (International Electrotechnical Commission Explosive) globally, and ATEX (ATmosphères EXplosibles) for the EU. When purchasing an explosion-proof solenoid valve, look for one of these marks. The specific standard followed may vary. NEMA uses a Divisions System (7-10) for hazardous location enclosure ratings. This aligns with the NEC (National Electric Code). It corresponds to specific environments and materials like explosive gases and particulates. In contrast, IEC Ex and ATEX employ a Zone System for Gas & Dust Groups. This covers many similar materials but uses a different organizational structure.
Furthermore, NEMA Rating defines suitable environments for electrical enclosures. It specifies protection against elements like moisture and dust. This is crucial for the valve’s electrical casing. IP Ratings specify the level of protection against the ingress of solids and liquids into the solenoid valve. This ensures durability in corrosive and hazardous environments.
How to Choose the Right Solenoid Valve for Your Needs
Selecting the correct solenoid valve for a system requires careful consideration of several factors. Engineers must match the valve’s characteristics to the specific demands of the application. This ensures optimal performance, reliability, and longevity.
Analyzing Application Requirements for Solenoid Valves
Before selecting a solenoid valve, engineers thoroughly analyze the application’s specific requirements. This includes understanding the operational environment, the desired control function, and the frequency of valve actuation. For high-cycle applications, where the valve switches rapidly, specific performance metrics become crucial. The valve needs a high cycle life to withstand hundreds of actuations per minute. It also requires durable internal components to prevent wear on parts like seals and plungers from frequent movement. Furthermore, robust materials are important for longevity, especially when high-frequency actuation introduces wear on mechanical components. The valve’s duty cycle or usage cycles also guide maintenance programs, highlighting the importance of a valve’s ability to perform reliably over many cycles.
Flow Rate and Pressure Considerations for Solenoid Valves
Flow rate and pressure are fundamental considerations when choosing a solenoid valve. The valve must effectively manage the fluid volume and pressure within the system. For pneumatic control systems, Kv values for solenoid valves typically range between 1 to 4 m³/h. A higher Kv value indicates a greater flow capacity, allowing more fluid to pass through the valve.
Engineers also consider pressure drop characteristics across different solenoid valve designs. Several factors influence this:
- Valve Size: Larger valves generally exhibit higher flow coefficients (Cv) and handle greater flow rates. However, they might have slower response times.
- Valve Design: The internal configuration, including the flow passage shape and valve element type (e.g., ball, poppet, diaphragm), significantly impacts the flow coefficient. A streamlined flow path reduces resistance and increases Cv compared to more complex internal geometries.
- Fluid Properties: Characteristics like viscosity, density, and temperature of the fluid influence pressure-flow. More viscous fluids lead to increased frictional losses and lower flow rates for a given pressure drop. Changes in fluid density also affect the flow coefficient.
- Operating Pressure: The pressure at which the valve operates affects performance. Very high pressures may require more robust designs. Engineers carefully consider pressure drop to prevent issues like cavitation.
Media Compatibility for Solenoid Valves
Media compatibility is a critical factor, especially when dealing with aggressive chemical media. The materials used in the solenoid valve must withstand the fluid it controls. The body material of the solenoid valve must resist chemical corrosion, erosion from fast-moving fluids, and chemical reactions at high process temperatures or pressures. The sealing mechanism also requires careful selection. Sealing materials must withstand system pressure and chemical aggression from the service media. These seals often consist of highly engineered materials with high pressure and temperature tolerance.
For aggressive media, material strength and resistance to failure are essential. The valve must withstand harsh conditions repeatedly. Materials need high chemical resistance to prevent degradation from corrosive, reactive, and chemically aggressive media. Temperature tolerance is also vital. Valve components must tolerate extreme ambient and media temperature fluctuations to maintain functionality and prevent leaks. Specific materials like stainless steel, corrosive-resistant alloys, and special plastics are suitable for handling aggressive media. Some valves also feature corrosion-resistant linings and coatings. Seals and gaskets must be specially designed to tolerate abrasive materials and maintain a tight seal. Always consult a chemical expert for material selection and utilize available chemical compatibility guides for quick reference.
Environmental Factors for Solenoid Valves
Environmental factors significantly influence solenoid valve selection. Engineers must consider the operating conditions to ensure reliable and long-lasting performance. These conditions include temperature extremes, moisture, dust, and potential hazardous atmospheres.
For outdoor installations or extreme environments, including high heat or freezing cold, engineers must ensure the solenoid valve’s IP rating and material selection are appropriate. Stainless steel with sealed coils offers long-term resistance to corrosion and electrical failure in humid conditions. Solenoid valve coils are designed for efficient heat dissipation in high temperatures. They can also include optional heating elements or insulation for cold climates. For example, a 220V AC Solenoid Valve Coil features a durable, weather-resistant housing. This housing protects against moisture, dust, and UV exposure. It allows effective operation across a wide temperature range. A 24V DC Explosion Proof Solenoid Coil is built with robust materials. It provides high protection against moisture, dust, and mechanical damage. This makes it suitable for hazardous outdoor environments like chemical plants or oil refineries. Furthermore, a 110V AC Solenoid Coil often has a special coating. This coating resists corrosion and UV damage, making it suitable for outdoor equipment.
Solenoid valves in washdown environments require specific protection levels. Industrial cleaning equipment, food processing machinery, and car wash systems often involve high-pressure, high-temperature sprays. In these demanding conditions, solenoid valves commonly require an IP69K rating for protection. For general washdown and food processing applications, an IP66 rating is also commonly required for solenoid valves. These ratings ensure the valve resists water ingress and maintains functionality.
Dust and particulate matter also pose challenges. Fine particles can enter the valve mechanism, causing blockages or wear. Selecting valves with appropriate IP ratings for dust protection prevents these issues. Vibration can also affect valve performance. Applications with high vibration levels require robust valve designs. These designs prevent loosening of components or premature failure. Understanding these environmental demands helps engineers choose the most suitable solenoid valve.
This guide explored the fundamental classifications of solenoid valves. It covered their operational mechanisms, default states, and port configurations.
- Operational Mechanism: Direct-acting, pilot-operated, semi-direct.
- Default State: Normally open, normally closed, bi-stable.
- Port Configuration: 2-way, 3-way.
Matching the correct valve type to specific application needs ensures optimal performance. This knowledge empowers readers to confidently select the appropriate solenoid valve for their fluid control systems.
FAQ
What is the primary difference between Normally Open (NO) and Normally Closed (NC) solenoid valves?
NO valves remain open without power, allowing fluid flow. NC valves stay closed without power, blocking fluid. Engineers select them based on the system’s fail-safe requirements and energy efficiency needs for their default state.
When should an engineer choose a direct-acting solenoid valve?
Engineers choose direct-acting valves for applications requiring operation from zero pressure. They are suitable for vacuum systems or closed circuits. These valves also offer very fast response times, making them ideal for quick-acting control.
What are the main advantages of bi-stable (latching) solenoid valves?
Bi-stable valves are highly energy-efficient. They only need a brief power pulse to switch positions. They hold their state without continuous power consumption. This feature reduces heat generation and is beneficial for battery-powered systems or applications with limited power.
Why are material choices crucial for solenoid valve performance?
Material choices ensure compatibility with the fluid media and operating environment. The body and seal materials must resist corrosion, temperature extremes, and pressure. Correct material selection prevents leaks, premature wear, and system failure.
How do environmental factors influence solenoid valve selection?
Environmental factors like temperature, moisture, dust, and hazardous atmospheres dictate valve specifications. Engineers select valves with appropriate IP ratings and robust materials. This ensures reliable operation and longevity in challenging conditions, such as outdoor installations or washdown areas.
