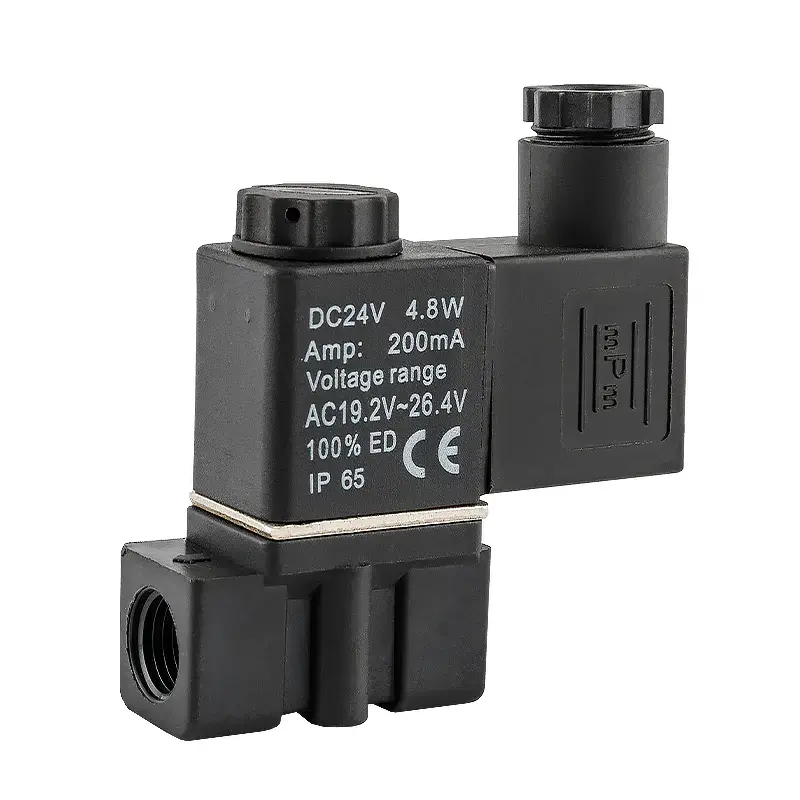

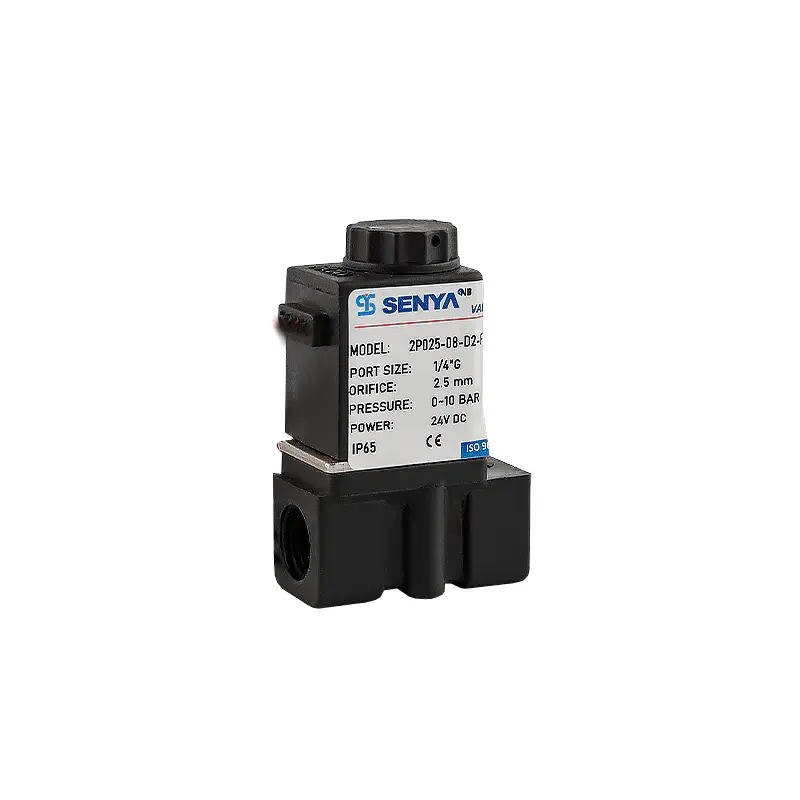

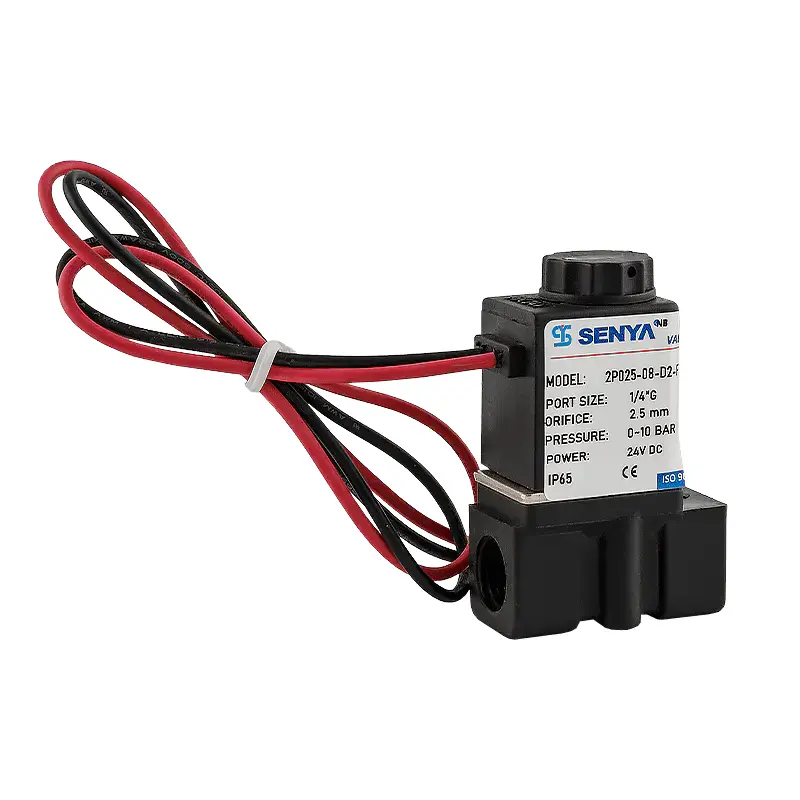

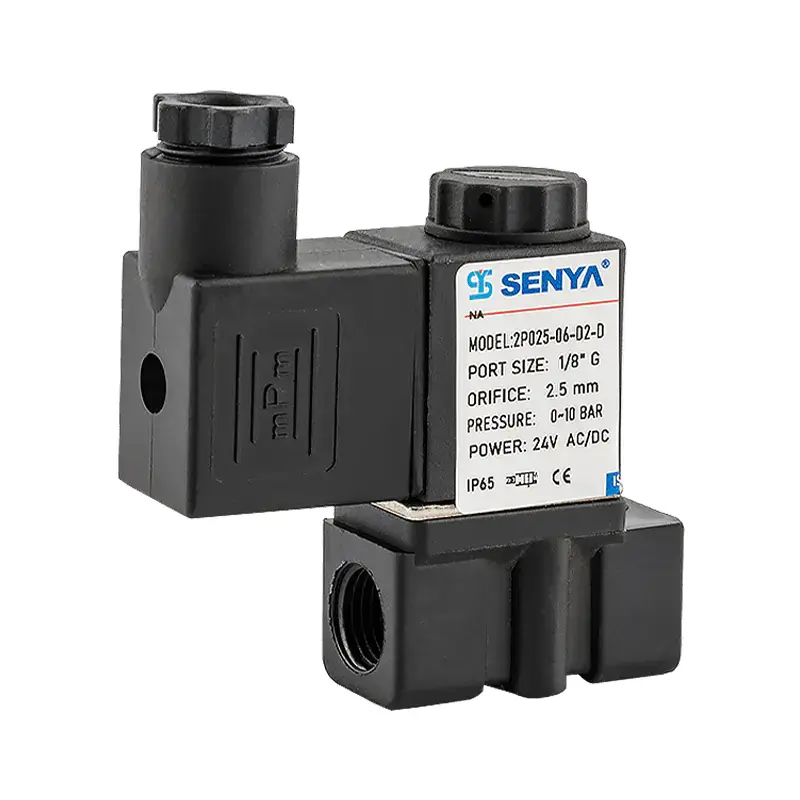

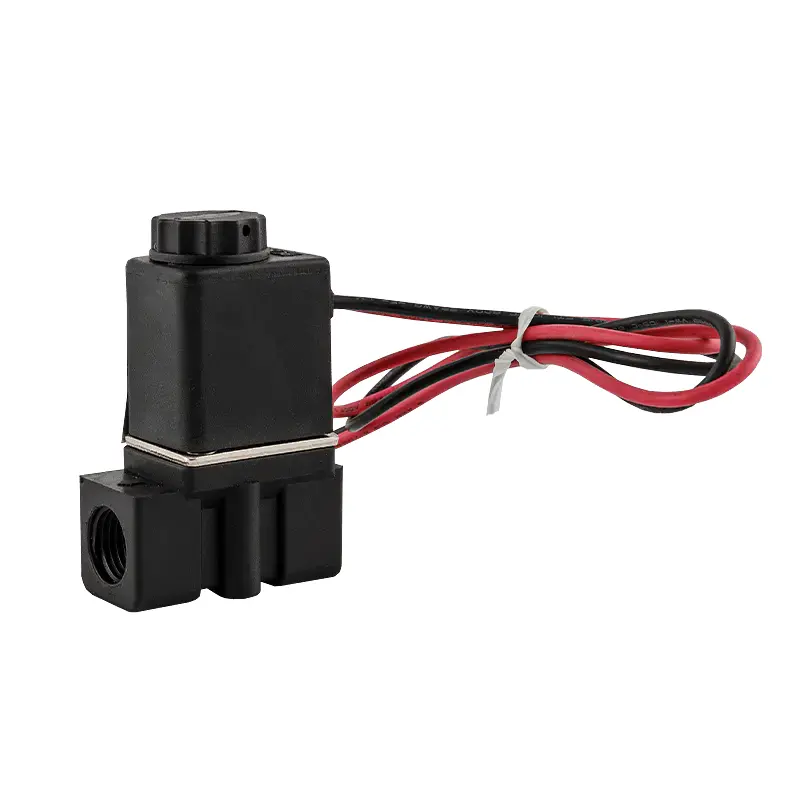

2P series nylon compact small port size solenoid valve with bottom mounting

The SENYA 2P Series nylon solenoid valve delivers compact, maintenance-friendly performance for mild chemical applications, featuring a glass-reinforced polyamide (PA66) body that resists weak acids and alkalis (pH 4-10 range) while being 40% lighter than metal alternatives. Its innovative quick-service design allows complete iron core replacement in under 10 seconds – 80% faster than conventional valves with snap-fit assembly system, significantly reducing downtime.

The valve achieves exceptional ＜30ms response times via a precision low-inertia plunger system, with 50% smaller flow path dead volume than standard DIN-sized valves for optimized performance in space-constrained installations. Suitable for dilute acids (≤5% sulfuric/phosphoric), weak alkalis (≤5% sodium hydroxide), and chlorinated water (≤2ppm free chlorine), it offers optional FKM seals for enhanced chemical resistance when needed. The compact design supports both direct pipe mounting (G1/8″-G1/2″ ports) and panel installation with M4 threaded holes, making it ideal for laboratory analyzers, mobile hydraulics, low-pressure chemical injection (≤10bar), and fertigation systems.

Rigorously tested to 1,000,000 cycles (EN 60534-4) with 500-hour salt spray resistance (ISO 9227) and an operational range of -20°C to +80°C, the 2P Series combines rapid cycling capability with exceptional serviceability to reduce maintenance time by up to 60% in demanding applications. For specific media compatibility or custom configurations, consult our technical team with your operating parameters.
